- RapidRise hydraulic power
unit includes dual pump pistons that raise the lift arm to maximum
height in six full incremental pump strokes.
- Strong chassis with upper
and lower frame flanges to withstand twisting.
- Wide front wheels and ball
bearing mounted rear caster wheels for stability and easy
maneuverability.
- Angular positioned pump
pistons provide maximum effective pump stroke when jack is completely
under a vehicle.
- Pump piston dust shields and
wiper seals prevent contaminants from entering the hydraulic system.
- Overload and bypass safety
valves prevent the jack from being used beyond its rated capacity and
over extension of the ram.
- Rubber saddle pad protects
vehicle frame from scratches while also providing a sure grip lifting
surface. Grooved saddle pad surface accepts vehicle panel rail.
- Pump handle protector ad
prevents damage to under car components and any vehicle parked close to
the jack.
Specifications:
| Capacity (tons) |
3.5
|
| Low Height (in.) |
3.88
|
| High Height (in.) |
20.5
|
| Chassis Length (in.) |
28 |
| Overall Width (in) |
14.25
|
| Chassis Height (in) |
6.38
|
| Saddle Dia. (in) |
4.75
|
| Handle Length (in.) |
50 |
| Shipping Weight (lbs) |
115
|
$85 standard freight fee. Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.
- *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
- *For lift-gate service, add $135.00.

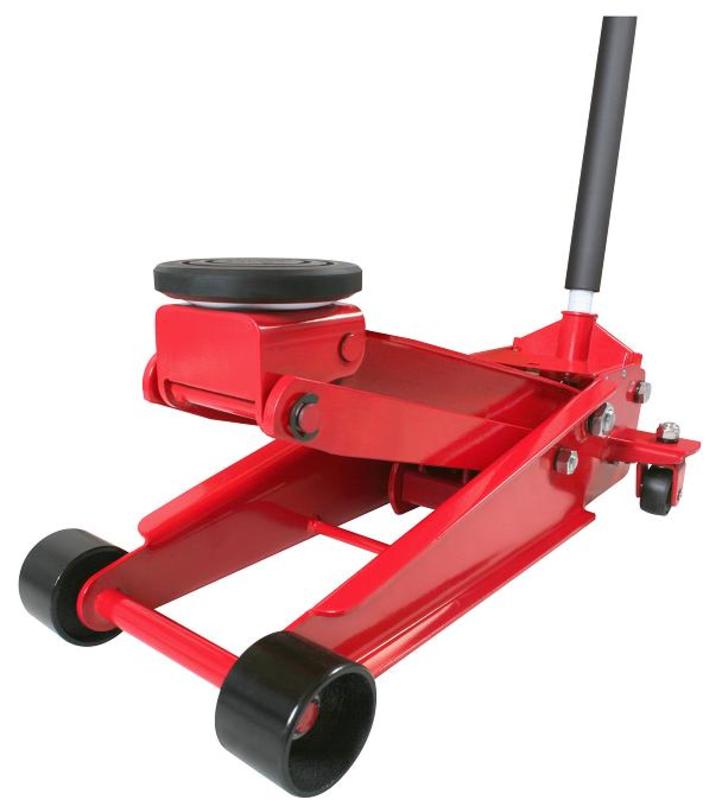

Sunex Tools 66037A 3.5 Ton Capacity Service Jack with Quick Lifting System SU66037A
