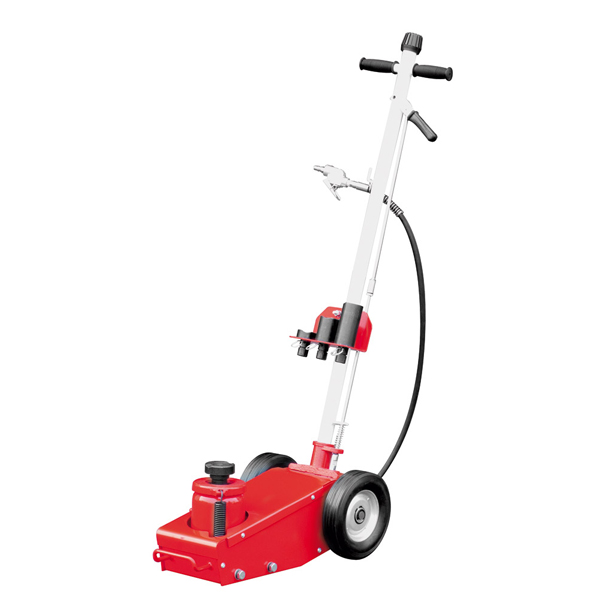

22 Ton Capacity Air Over Jack with Quick Springs - Astro Pneumatic

Part #: AJ22FE

22 Ton Capacity Air Over Jack with Quick Springs  AJ22FE

Features
? Compact and portable ? Large 8" (203mm) diameter hard rubber tires make maneuverability easier ? Includes quick springs for fast ram retraction - eliminates manual lowering of jack ? Safety overload system prevents jack from being used beyond its rated capacity ? Extension screw gives added height when necessary ? Jack release valve is top mounted at "T" handle and allows jack operation at any handle position ? Handle locking lever secures handle in either vertical or horizontal position ? Long “T” handle helps in positioning jack under vehicles with long overhang ? Rust inhibitive coating on ram and extension screw ? Comes with extended height saddle adapters ? MEETS ANSI STANDARD FOR PERFORMANCE AND SAFETY SPECIFICATIONS: Weight Capacity: 22 Ton (44,000 lbs.) Min. Saddle Height: 8-1/4" (210mm) Max. Saddle Height: 20-5/8" (525mm) Air Pressure: 100-145psi Hydraulic Lift: 4-1/2" (110mm) Chassis Length: 22-3/8" (570mm) Chassis Width: 12-3/4" (322mm) Height with Handle: 47-5/8" (1210mm) Net Weight: 101.3 lbs. (46kg)

Astro Pnemuatic AO AJ22FE 22 Ton Capacity Air Over Jack with Quick Springs

$85 standard freight fee.
Browse Service Jacks (Floor Jacks)

This product was added to our catalog on Sunday 18 July, 2010.
