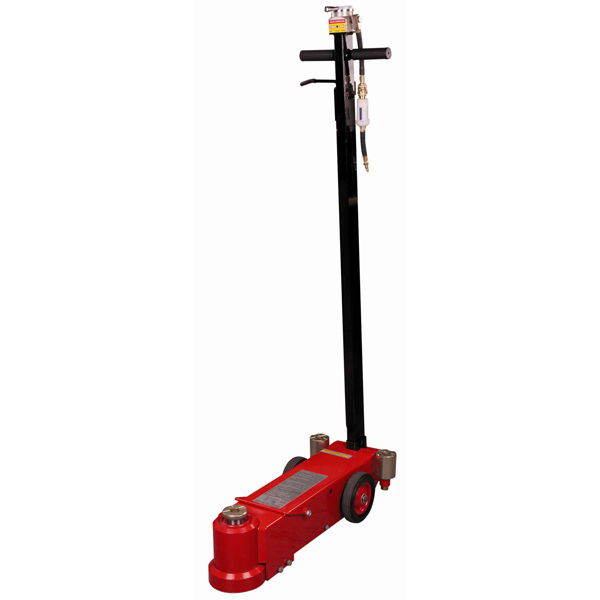

2-Stage Axle Jack - 11 & 27-1/2 Ton - American Forge & Foundry

Part #: 525

  • Designed for heavy-duty applications where added stability is required. Extra-long body configuration provides added reach for under-vehicle lifting.
  • Ideal for heavy truck, industrial, agricultural and construction equipment.
  • Low pickup height ideal for drop axle applications found on buses.
  • Handle locks in the horizontal, 45?, or vertical position.
  • Compact design fits between most tandem wheels.
  • Hard chromium-plated ram for extended life.
  • Built-in safety valve prevents jack from being used beyond its rated capacity.
  • Includes two 3" saddle extensions.


  • Specifications:
    • Stage 1 Capacity: 27-1/2 Tons
    • Stage 2 Capacity: 11 Tons
    • Ram Lift: 7"
    • Low Height: 7"
    • Stage 1 Height: 10-3/4"
    • Stage 2 Height: 15"
    • Reach: 75"
    • Width: 12-1/4"
    • Shipping Weight: 126 Lbs.
    $85 standard freight fee.

    AFF 525 11 & 27-1/2 Ton 2-Stage Axle Jack
