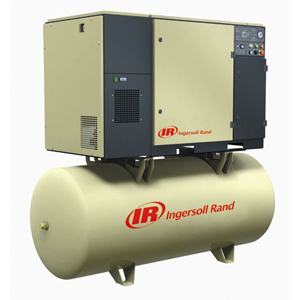

10HP Rotary Compressor - Ingersoll Rand

The Ingersoll Rand 10HP Rotary Compressor, model 18004465, delivers a reliable and efficient air solution engineered for professional automotive and industrial applications. This robust rotary screw air compressor is designed for continuous duty operation, providing a consistent supply of high-quality, pulse-free air essential for demanding work environments. Its advanced design prioritizes both performance and durability, ensuring a long operational life with minimal maintenance.

Key Features

• Continuous Duty Operation: Engineered for sustained use in professional settings, delivering consistent performance for demanding industrial tools and automotive equipment.
• Superior Air Quality: Equipped with an air-cooled aftercooler and often available with a Total Air System (TAS) package including an Energy Star® rated refrigerated air dryer and dual filters, ensuring cool, dry, and clean air for extended tool life.
• Quiet and Efficient Performance: Operates at a low sound level, typically between 64 to 69 dBA, allowing for installation closer to the point of use, which contributes to a safer and more comfortable work environment.
• Extended Service Life: Features Ultra-Plus coolant with a 9,000-hour / 2-year lifespan, reducing maintenance frequency and enhancing longevity.
• Integrated Design: Includes a full voltage motor starter (wired for 230-3-60 voltage standard), dual control (auto start/stop, constant speed), and NEMA-1 electrical protection for simplified installation and operation.
• Robust Construction: Built with an ASME coded horizontal receiver tank (80 or 120-gallon options) and a full sheet metal enclosure for durability and component protection.

Applications

This 10HP rotary screw air compressor is an ideal solution for a variety of professional applications requiring a dependable and continuous air supply. It is well-suited for automotive service centers, enabling efficient operation of impact wrenches, tire changers, paint spray guns, and pneumatic lifts. In industrial settings, it reliably powers a range of pneumatic tools, production line machinery, and general shop equipment, making it a valuable asset for manufacturing, fabrication, and maintenance operations.

Specifications

• Manufacturer: Ingersoll Rand
• Model Number: 18004465
• Horsepower: 10 HP
• Voltage (Standard): 230V, 3-Phase, 60Hz (Other voltages available)
• Max PSI: 125 PSI (Configurable up to 150 PSI)
• CFM: Approximately 38 CFM @ 125 PSI (or 36 CFM @ 150 PSI)
• Tank Size: Typically 80 or 120 Gallons, Horizontal
• dB Rating: 68 dBA
• Dimensions (L x W x H): 74-13/16" x 29" x 60-11/16" (for 120 Gal TAS unit)
• Product Weight: 1021 lbs (for 120 Gal TAS unit)
