Paint & Body > Riveters - Rivets > Riveters > M-3 Heavy Duty Air Hydraulic Rivet

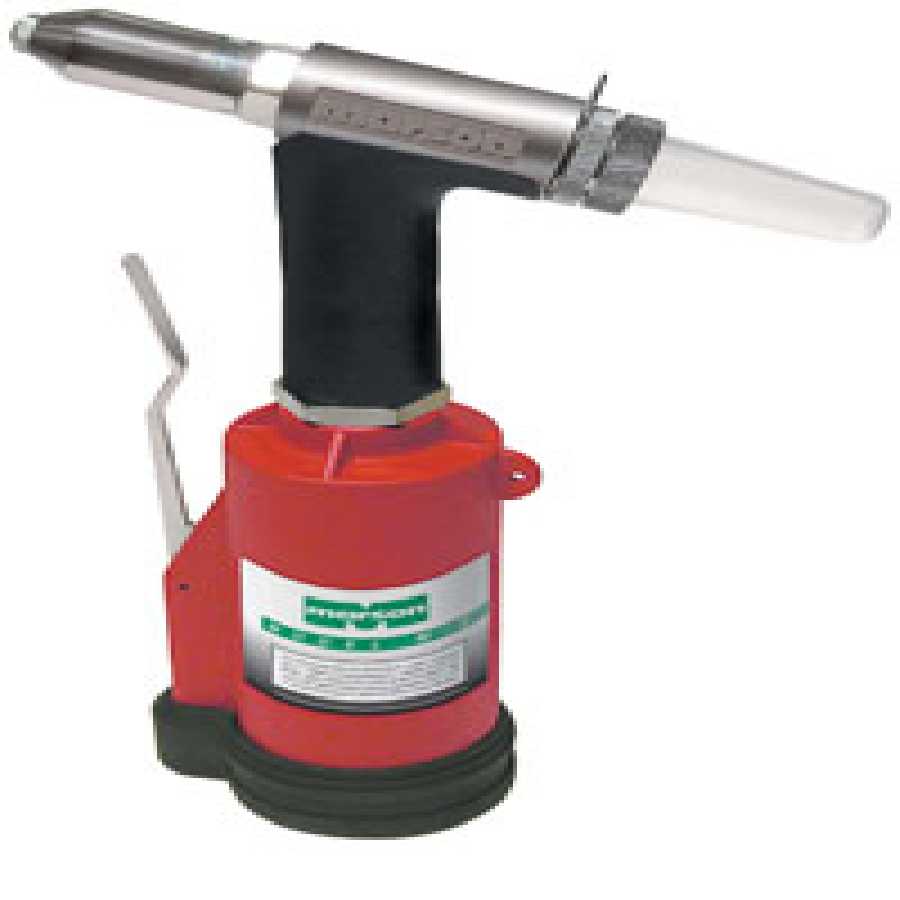

M-3 Heavy Duty Air Hydraulic Riveter

M-3 Heavy Duty Air Hydraulic Riveter
  • This heavy-duty air/hydraulic riveter with its newly designed steel forged head can hold up under demanding continuous use.
  • The steel forged head allows for continuous full operating power and less internal wear.
  • M-3 can set rivets from 1/8" through 3/16" diameters in all alloys, and it has the capability of setting structural rivets.
  • Included with the M-3 are standard 1/8", 5/32", and 3/16" nosepieces, a service wrench, swivel inlet air coupler and a mandrel collection bottle
  • The M-3 is packaged in a compartment storage container.
  • The recommended airline pressure is 85-95 PSI.
  • Weight: 6.2 lbs.
Specifications:
  • Rivet Setting Capacity: 3/16" diameter
  • Traction power: 3099 lbs
  • Operating air pressure: 85-95 PSI (1,983 lbs./8,820n)
  • Air consumption: 4 CFM
  • Stroke: .551" (14mm)
  • Air Inlet: 1/4" N.P.T.
  • Overall height: 12"
  • Weight: 3.0 lbs.
Marson 39054 M-3 Heavy-Duty Riveter
  • Shipping Weight: 3lbs
  • Manufactured by: Marson
  • Toolsource #: 102040
  • Manufacturers Part #: 39054
  • Also Known As: MAR-39054, MAR39054, MR39054

Only 1 left in stock - order soon

Inventory available from other suppliers, prices may be different

$198.37
