Hydraulic 30 Ton Single Acting

Key Features:

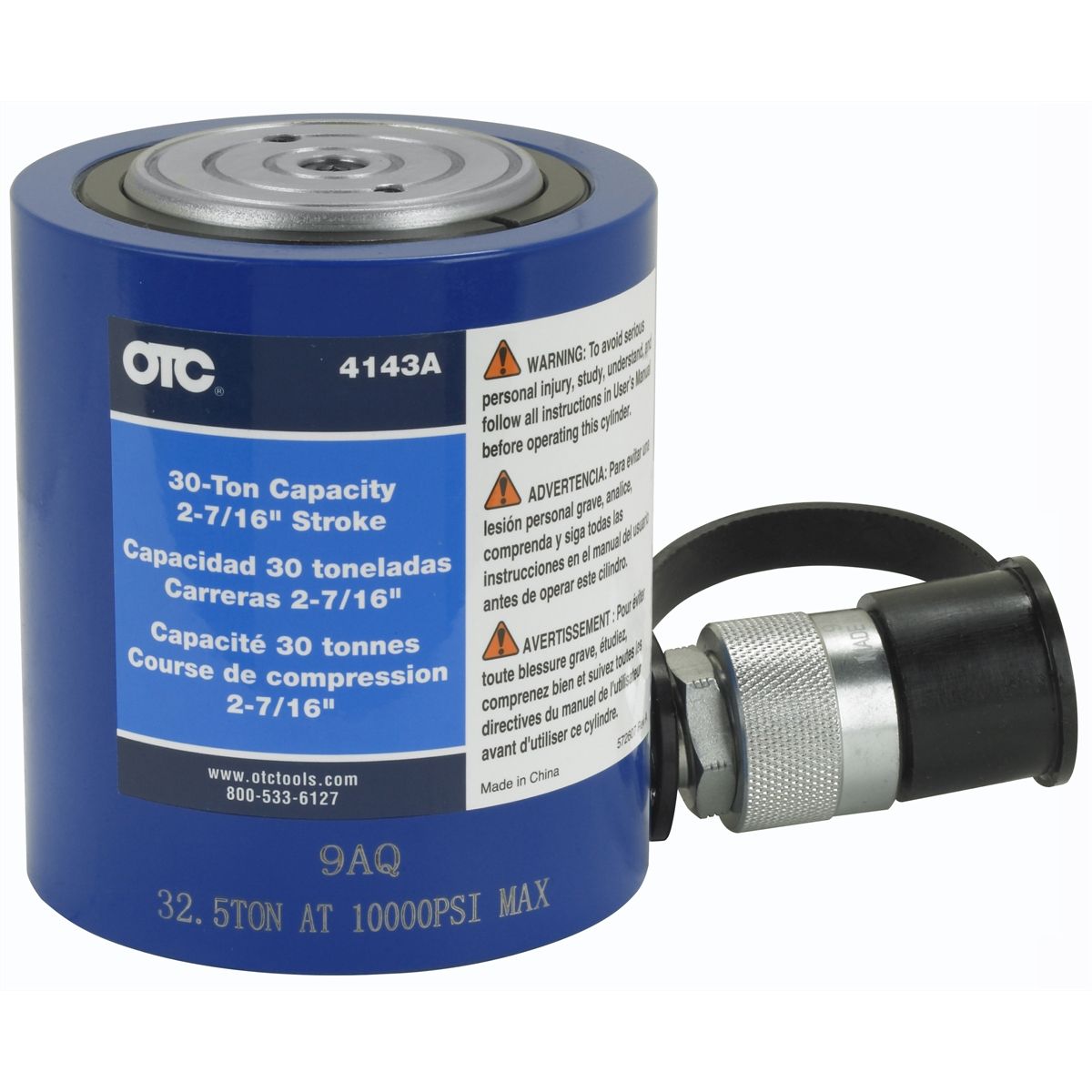

The OTC 4143A Hydraulic Ram is a single-acting, spring-return hydraulic cylinder designed for applications requiring a 30-ton load capacity. Its compact design incorporates a 2-7/16 inch stroke with a retracted height of 4-5/8 inches and an extended height of 7-1/16 inches. The piston rod features bronze plating for enhanced durability and resistance to scoring. An angled (5-degree) coupler port facilitates easier connection.

Applications:

This hydraulic ram is suitable for various applications requiring a controlled, powerful pushing or pressing force within its 30-ton capacity. It is particularly well-suited for situations where space is limited due to its low collapsed height and efficient stroke length.

Benefits:

The spring-return mechanism eliminates the need for a separate retraction system, improving efficiency and reducing downtime. The bronze-plated piston rod enhances the longevity of the ram by reducing wear. The compact design makes it suitable for use in confined spaces. The angled coupler port simplifies the connection process.

Specifications:
