Thexton Relay Bypass Kit with 5-Foot Testing Cord - Thexton Mfg Co

Specifications

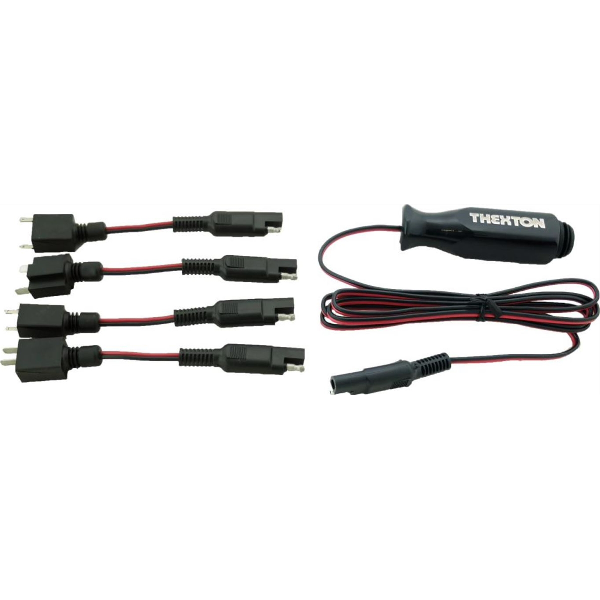

The Thexton Relay Bypass Kit, model 927, includes a 5-foot testing cord for extended reach and flexibility during diagnostic procedures. This tool is designed for efficient and accurate electrical testing. It has a lightweight design, weighing 1.05 lbs. The compact dimensions of 13 x 4.5 x 4 inches ensure portability and easy storage. The manufacturer is Thexton Mfg Co Thexton THEXTON THEXTON. The model number is 927.

Key Features

• Relay Bypass Functionality: This kit enables direct bypassing of automotive relays for quick and reliable circuit testing.
• Extended Testing Cord: A 5-foot cord provides ample length to access relays in hard-to-reach locations.
• Universal Compatibility: Designed to work with a wide range of common automotive relays, offering versatile diagnostic capabilities.
• Durable Construction: Built to withstand the demands of professional garage environments, ensuring longevity and consistent performance.

Applications

The Thexton Relay Bypass Kit is an essential tool for automotive technicians and DIY enthusiasts performing electrical diagnostics. It is used to:

• Test Automotive Electrical Systems: Effectively diagnose issues within vehicle electrical circuits, including fuel pump circuits, starter circuits, and cooling fan circuits.
• Isolate Relay Malfunctions: Quickly determine if a relay is faulty by bypassing it to check component operation.
• Troubleshoot Wiring Problems: Identify open circuits or shorts by directly powering components via the bypass feature.
• Verify Component Functionality: Confirm that components such as fuel pumps, cooling fans, and headlights are receiving power independent of the relay.

Benefits

• Accelerated Diagnostics: Reduces the time required to pinpoint electrical faults by simplifying the testing process for relays and their circuits.
• Enhanced Accuracy: Provides a direct method to test relays and components, leading to more precise troubleshooting and fewer misdiagnoses.
• Prevents Damage: Eliminates the need to cut or splice wires, protecting the vehicle's original wiring harness during testing.
• Improved Efficiency: The long testing cord allows for greater access, minimizing effort and maximizing convenience when working in confined engine compartments or under dashboards.
• Cost-Effective Repairs: Facilitates quicker identification of issues, potentially reducing labor time and associated repair costs.
