What is a noid light and how is it used in automotive diagnostics?

A noid light is a diagnostic tool used to quickly check the electrical pulse signal to fuel injectors. It helps determine if the engine control module (ECM) is properly sending the signal to fire the injectors. To use, disconnect the fuel injector, plug the noid light into the injector's electrical connector, and then crank the engine. If the light flashes, the ECM is sending a signal. The Astro Pneumatic Noid Lite Deluxe & GM Signal Test Light Set is one example of a kit that includes multiple noid lights for different injector types, making diagnosis faster.

What are the different types of noid lights, and which one should I use?

Noid lights come in various configurations to fit different fuel injector connectors, including those for GM TBI, Bosch PFI, Ford TBI, and GM PFI systems. Universal noid light sets, like the Lisle Universal Noid Light, often include multiple adapters to cover a broader range of vehicles. Choosing the correct noid light depends on the specific type of fuel injector connector on the vehicle you are diagnosing. Using the wrong adapter can lead to inaccurate readings or damage to the connector.

Can a noid light determine if a fuel injector is functioning correctly, or does it only test the electrical signal?

A noid light only verifies the presence of an electrical signal to the fuel injector. It confirms that the ECM is sending the command to fire the injector, but it doesn't confirm that the injector is actually spraying fuel. If the noid light flashes but the engine is still misfiring, the injector itself may be clogged, faulty, or have other mechanical issues. For comprehensive injector testing, further diagnostics like fuel pressure testing or injector cleaning may be needed.

Are noid lights compatible with both domestic and import vehicles?

Compatibility depends on the specific noid light and the adapters included. Many noid light sets, like the OTC Tools and Equipment Bosch PFI Noid Lite, are designed with adapters to fit a range of both domestic and import vehicle fuel injection systems. However, it's crucial to check the product description or compatibility chart to ensure the noid light is suitable for the specific vehicle and injector type you are working on. Some specialized import applications may require specific noid lights not included in universal kits.

How do I use a noid light safely and avoid damaging the fuel injection system?

Always disconnect the negative battery terminal before working on the fuel injection system to prevent accidental shorts. When using a noid light, ensure the correct adapter is securely connected to the fuel injector connector to avoid damaging the terminals. Avoid forcing the connection, and never probe the connector terminals directly with sharp objects, as this can damage the wiring or injector. Refer to the vehicle's service manual for specific fuel system precautions and procedures.

What is the difference between a noid light and a logic probe, and when would I use each?

A noid light is specifically designed to test the pulsing signal to fuel injectors. A logic probe, such as the OTC Tools and Equipment Heavy-Duty Logic Probe Tester - Noid Light, is a more general-purpose tool used to detect voltage levels (high/low) in various circuits. While some logic probes can function as a noid light with the correct adapters, their primary use extends to testing other electronic components and circuits beyond the fuel injection system. Use a noid light for quick injector signal verification, and a logic probe for broader electrical diagnostics.

My noid light isn't flashing, but I suspect the injector is still getting power. What could be the issue?

If a noid light doesn't flash, it usually means the ECM isn't sending the pulsed signal to the injector. However, if you suspect the injector is receiving constant power, it could indicate a short circuit in the wiring harness or a faulty ECM driver. Double-check the noid light connection and try a different injector to rule out a faulty noid light. If the issue persists, use a multimeter to check for voltage and ground at the injector connector, and consult a wiring diagram to trace the circuit back to the ECM.

Can I use a noid light to test other pulsed signals in a vehicle, such as those for idle air control (IAC) valves or electronic spark timing (EST) systems?

While a noid light is primarily designed for fuel injector signals, some can be adapted to test other pulsed signals if the connector is compatible and the voltage range is appropriate. However, it's crucial to verify that the noid light's voltage range matches the signal being tested. Using a noid light on an incompatible circuit could damage the tool or the vehicle's electronics. A logic probe, with its wider voltage range and diagnostic capabilities, is often a better choice for testing diverse pulsed signals.

Search

Manufacturers [more]

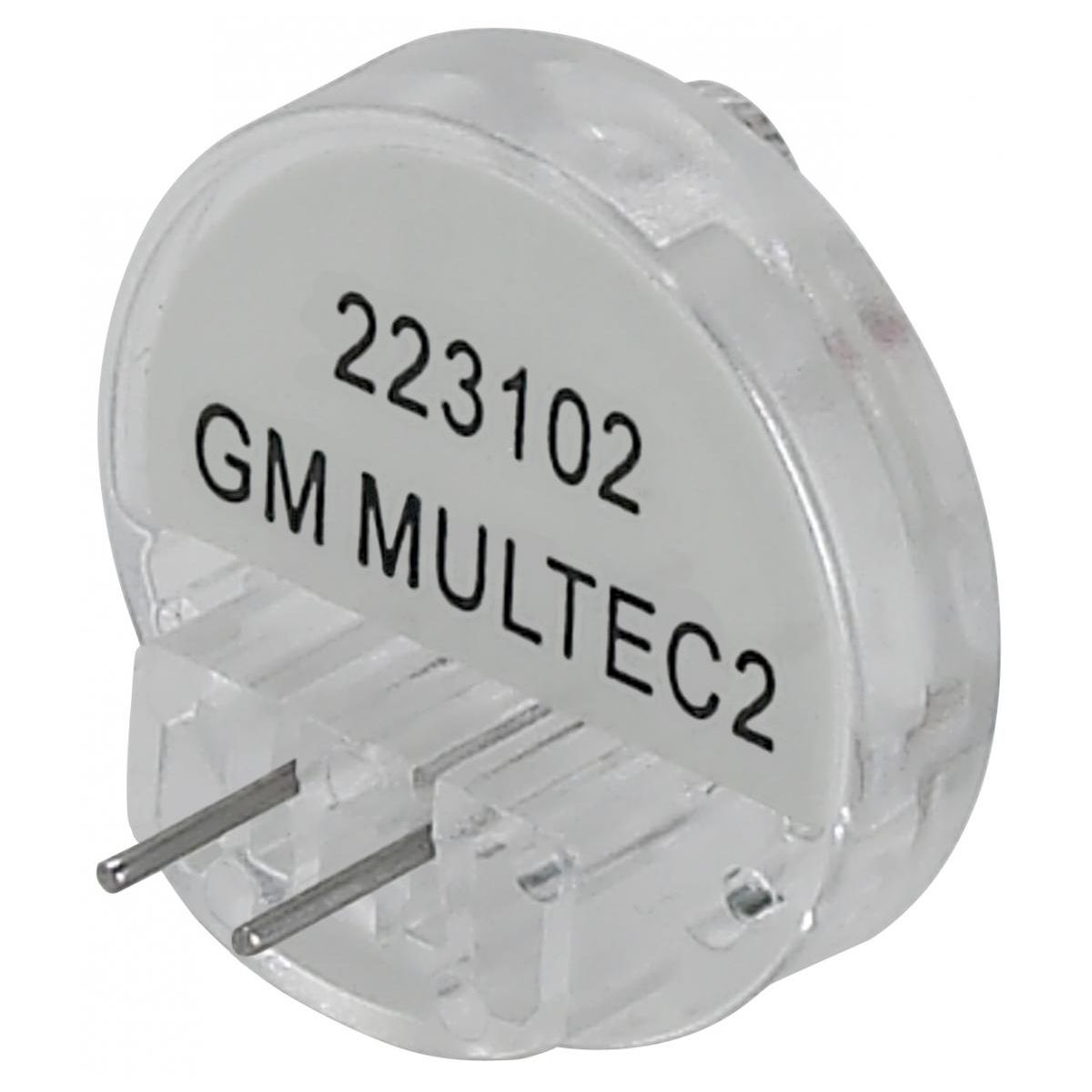

OTC Tools and Equipment | 6023 | Noid Lite for GM Multec 2 Injectors

Name: Noid Lite for GM Multec 2 Injectors
Brand: OTC Tools and Equipment
SKU: 124604
Price: 22.65 USD
Availability: InStock
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: OTC Tools and Equipment OTC OTC TOOLS & EQUIPMENT
Model Number: 6023
Product Name: Noid Lite for GM Multec 2 Injectors
Weight: 0.2 lbs
Dimensions: 8 x 5 x 2 inches

Key Features

Engineered specifically for GM Multec 2 Injectors.
Provides clear visual confirmation of injector pulse.
Compact and lightweight design ensures easy handling and storage.
Constructed for durability, offering reliable performance.

Applications

Diagnosing electrical issues within GM Multec 2 fuel injection systems.
Testing for the presence of an electrical pulse at fuel injectors.
Troubleshooting common engine problems such as misfires and no-start conditions related to injector signals.
Ideal for professional automotive technicians and DIY enthusiasts performing vehicle diagnostics.

Benefits

Quickly identifies non-firing GM Multec 2 injectors, streamlining diagnostic processes.
Saves valuable time by providing immediate visual feedback on injector circuit integrity.
Offers a simple, accurate method to confirm if the fuel injector is receiving its electrical signal.
Helps prevent unnecessary replacement of functional fuel injectors by verifying electrical pulse presence.

Other products
OTC Tools and Equipment Homepage
Model: 124604
Shipping Weight: 0.2lbs
Manufacturers Part #: 6023
Manufactured by: OTC Tools and Equipment
Also Known As: OT6023, OTC6023, OTC-6023
