XP-15C 2-Post Lift - 15,000 Lb Capacity - Bend-Pak

Pricing Subject to Change - An unprecedented demand for steel across the globe in the last 12-months in addition to unstable oil and fuel prices has made it extremely complicated for Bend Pak to forecast manufacturing costs. Because of this, BendPak has no choice other than to reevaluate future pricing and revise if necessary.

Freight delivery - will be shipped prepaid anywhere in the continental United States.

ToolSource will take no responsibility for additional charges of any kind that may incur related to, or involved with, the renting or acquisition of equipment of any kind necessary to unload items off of a delivering carrier's truck.

• An additional $40.00 will apply to all residential deliveries of heavy-equipment.
• For lift-gate service, add $135.00.

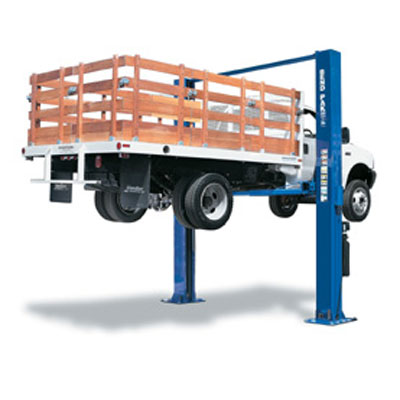

This rugged 15,000-pound capacity model was designed specifically for heavy truck service. But just because this super duty model was designed for the big stuff doesn't mean it can't handle your light-duty work as well. Full-reach arms that collapse to standard lengths and lower lift pads clutch standard passenger vehicles yet still accommodate commercial and fleet vehicles. We purposely placed the columns wider for vehicles with fixed towing mirrors and designed the overhead equalization beam up out of the way to accommodate "high cube" delivery vans. This advanced, state-of-the-art super-duty lift also features dual direct-drive low-pressure cylinders, maintenance-free UHMW load bearings, single-piece columns, extra-tall lifting carriages and oversize cable sheaves.

XP-Series two-post lifts offer a wide selection of durable, safe and reliable systems for virtually every lifting application. These rugged lift models easily have the capacity to safely lift your largest full-size pick-ups and commercial vehicles yet still provide specific lifting capability for sport and compact vehicles, both foreign and domestic. You'll find the new XP-Series lifts are the perfect addition to your shop if you're looking to make more money in less time than ever before.

Specifications:

• Lifting Capacity 15,000 Lbs. / 6804 Kg.
• Overall Height(*) 170" / 4318 mm
• Overall Width (Outside of Base Plate 155" / 3937 mm
• Width (Outside of Columns) 144" / 3658 mm
• Floor To Overhead Switch(*) 165" / 3581 mm
• Inside Columns 120" / 3048 mm
• Reach (Front Arm Min.) 41" / 1041 mm
• Reach (Front Arm Max) 62" / 1575 mm
• Reach (Rear Arm Min.) 41" / 1041 mm
• Reach (Rear Arm Max) 62" / 1575 mm
• Min. Pad Height 5" / 102 mm
• Rise 69" / 1753 mm
• Max Lift Height (Pad Only) 74" / 1880 mm
• Max Lift Height (6" Adapter) 80" / 2032 mm
• Drive-Thru Clearance 106" / 2692 mm
• Motor (**) 220 VAC / 60 Hz. 1Ph.
• Time of Full Rise 45 Seconds
• Max Load Per Arm 3,750 Lbs. / 1701 Kg.

* An optional bolt-on top extension for columns raises the overhead bar an additional 24". Must be ordered from factory at time of order

** Special voltages available upon request.

The design, material and specifications are subject to change without notice.
