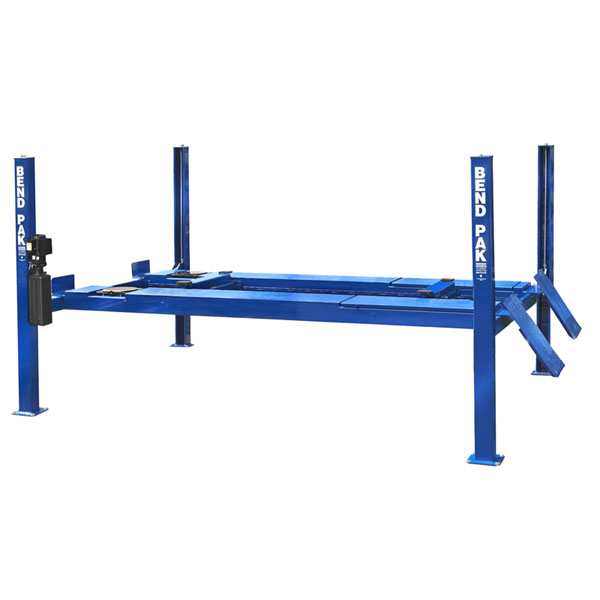

Four-Post Cable Design Limo Alignment Lift - 14,000 Lb - Bend-Pak

FREE FREIGHT!*

BendPak's "HD-Series" four-post alignment lifts are engineered to meet the demands of even the toughest professionals. Designed into every "HD-Series" lift are key features that make them the absolute best you can buy, a long list of features that improve safety, durability and productivity. These commercial-grade lifts are second to none and have become benchmarks throughout the world for quality and dependability.

The HD-14LSXE is a full-length four-post alignment runway style lift designed for professional use.

• 14,000 pound lifting capacity
• Runways include rail kit for optional accessories
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks, and sheaves
• Internal "anti-sway" slider blocks in each column

Additional Features:

• 14,000 pound lifting capacity
• Heavy-duty turn plates and integrated rear slip-plates included
• Multi-position turn plate pockets
• Automatic leveling system
• Runways include rail kit for optional accessories
• Single hydraulic cylinder mounted underneath runway
• Fully enclosed lifting cables, safety locks, and sheaves
• Internal "anti-sway" slider blocks in each column
• Pneumatic push-button safety release
• Features heavy-duty 1/2" aircraft cable
• Safety locks enclosed in columns minimize pinch points
• Oversized sheave diameter reduces cable fatigue
• Rugged, self-lubricating cable sheaves combined with 1-1/4" sheave axles are fully enclosed minimizing pinch points
• Multi-position safety locks in each column
• Power unit can be located at the front or rear of the lift
• Independent "back-up" slack-cable safety latches.
• Optional 7000 pound capacity rolling jacks available.
• Style Alignment
• Lifting capacity(*) 14,000 lbs. / 6350 Kg.
• Maximum Lifting Height 79-1/4" / 2013 mm
• Lifting Time 65 Seconds
• Overall Width 126" / 3200 mm
• Overall Length 273" / 6934 mm
• Height of Columns 88" / 2235 mm
• Minimum Runway Height 9-3/4" / 235 mm
• Max. Rise 70" / 1778 mm
• Max. Lifting height 79-1/4" / 2013 mm
• Width between columns 116" / 2946 mm
• Runway Width 20" / 508 mm
• Width Between Runways(*) 37" - 49" / 940 mm - 1245 mm
• Length of Runways 236" / 5994 mm
• Min. Four Wheel Alignment(**) 72" / 1828 mm
• Max. 4-Wheel Alignment(**) 135" / 3428 mm
• Min. Two Wheel Alignment 212" / 5385 mm
• Locking Positions 13
• Lock spacing every 4" / 102 mm
• Standard Motor(**) 220 VAC / 60 Hz. 1 Ph.


* This dimension may be limited with the addition of rolling jacks.
** May vary depending on wheel size.

Shipping Information:

• Dimensions - 204" x 22" x 40" / 5182 mm x 559 mm x 1016 mm
• Shipping Weight - 2105 lbs. / 955 kg

FREE SHIPPING* Applies to direct shipping points within the 48 continental US. Rural Area Surcharge may apply.

An additional $40.00 will apply to all residential deliveries of heavy-equipment.

For lift-gate service, add $135.00.

It is the buyer's responsibility to unload the freight at their location. BendPak/ToolSource will take no responsibility for additional charges of any kind that may incur related to, or involved with, the renting or acquisition of equipment of any kind necessary to unload items off of a delivering carrier's truck.
