European Automotive Import Connector Adapter Set

Name: European Automotive Import Connector Adapter Set
Brand: Pomona
SKU: 89821
Price: 161.82 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Non-stock iem; please email service@toolsource.com for lead time.

This test adapter kit is essential if you work on import vehicles.
Allows connection to the most popular pin sizes for harness, PCM, sensor and actuator tests.
Includes a set of 48" long silicone insulated test leads.

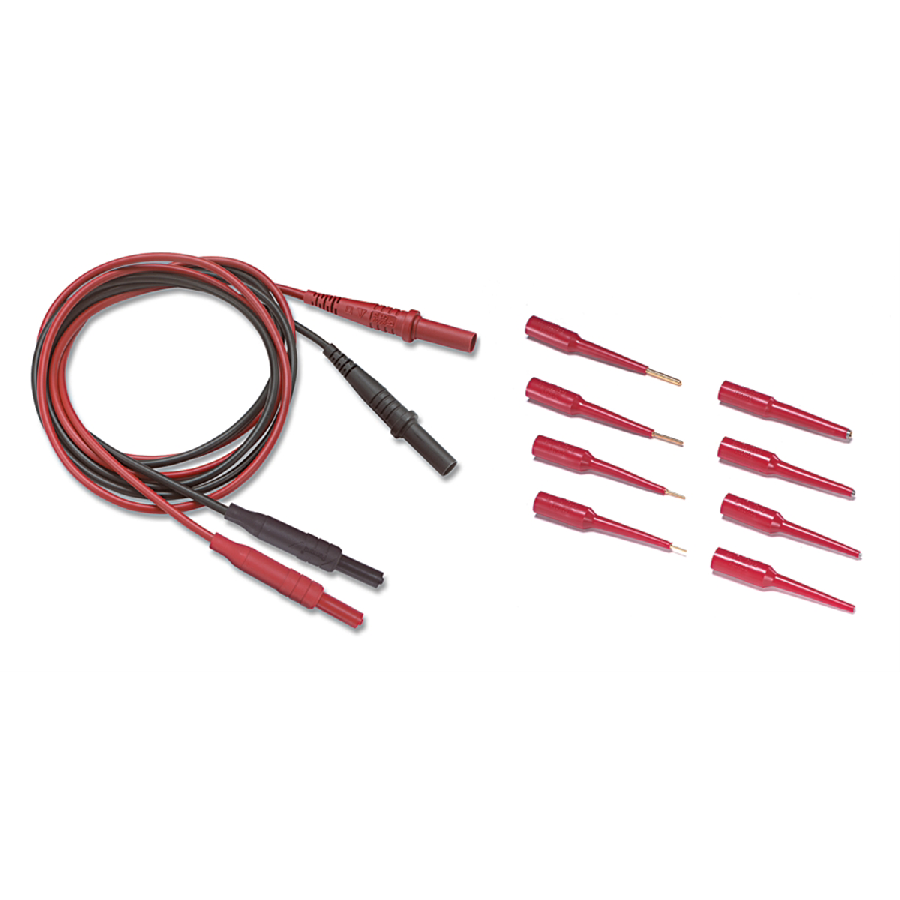

18-piece kit includes one red and one black set of each pin & socket size along with a set of 48" (1,2m) red and black test leads.
Test adapters are ideal for rapid testing of the hard-toget at contacts of multi-pin/socket connectors.
Round pins and socket adapters.
Flexible tip allows testing of adjacent contacts.
Full insulation protects against shorting or contact damage.
Test leads feature high strand count silicone wire for extreme flexibility and high temperature resistance.
Model 4690 also fit 0.025in (0.63mm) sq. pins.

Voltage Rating: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/42.4 Vpk/60 Vdc or current exceeds 8A maximum. Maximum voltage for hands free use: 1000Vrms. Do not use on circuits where transient stresses can exceed the rated voltage.

Pomona Electronics 6481 Import Connector Adapter Set

Model: 89821
Shipping Weight: 0.25lbs
Manufacturers Part #: 6481
Manufactured by: Pomona
Also Known As: POM6481

Special Order
Contact For Details
