High Current Probe with Free Fuse Buddy Current Loops - Electronic Specialties

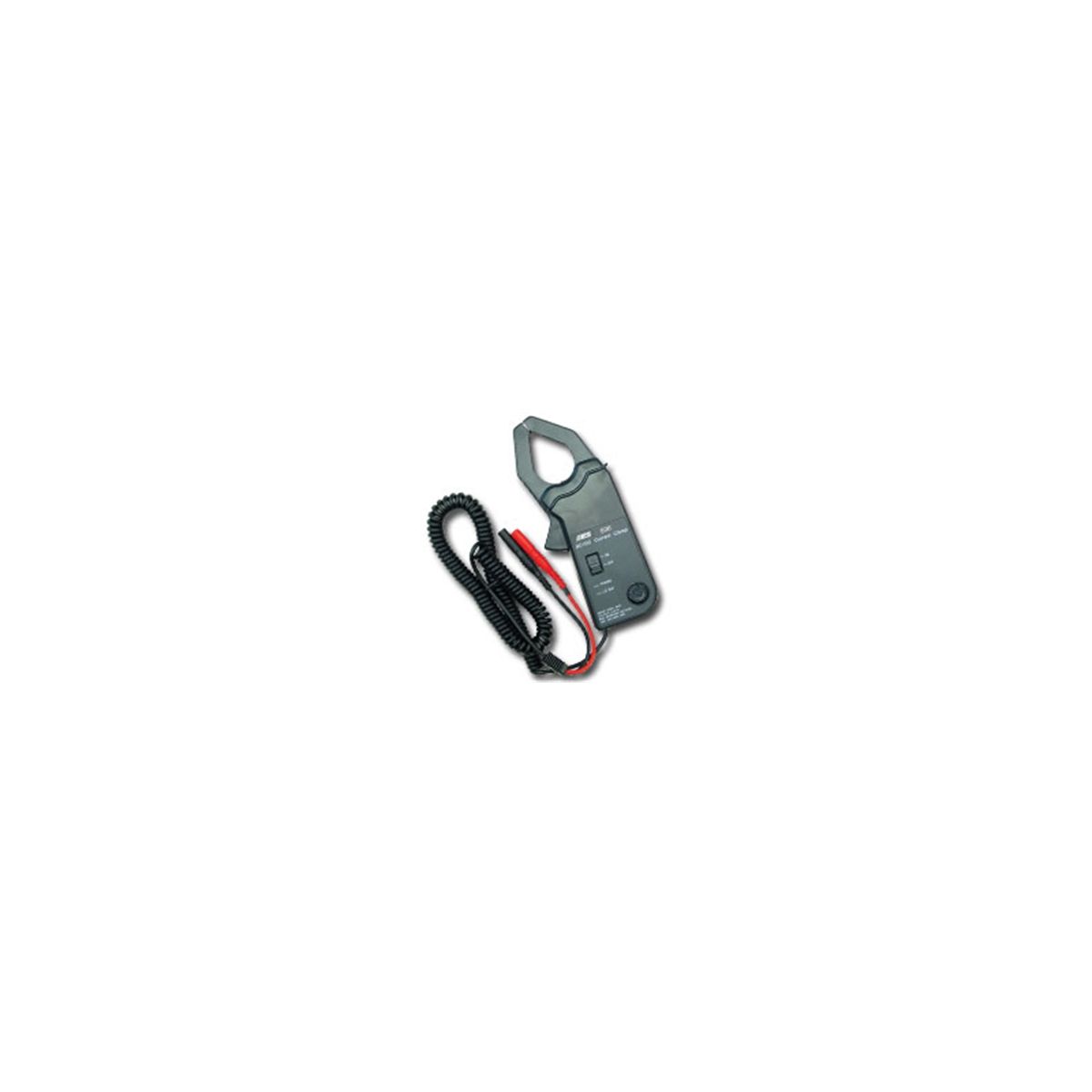

The Electronic Specialties 696P High Current Probe is a professional-grade diagnostic tool engineered for accurate current measurement in demanding automotive and industrial applications. Capable of measuring up to 600 Amps DC/AC, this probe seamlessly integrates with existing digital multimeters, lab scopes, or graphing meters for comprehensive system analysis. Included with the 696P are the ESI307M and ESI308B Fuse Buddy Current Loop units, providing a direct and efficient method for acquiring circuit amperage readings at the fuse panel.

Key Features

• High Current Capacity: Accurately measures current up to 600 Amps DC/AC, suitable for high-demand systems.
• Broad Compatibility: Designed for use with a wide range of diagnostic equipment, including digital multimeters, lab scopes, and graphing meters.
• Precision Control: Features a manual zero adjustment to ensure accurate baseline readings.
• Reliable Operation: Equipped with a low battery indication to prevent interruptions during testing.
• Integrated Fuse Buddy System: Comes complete with ESI307M and ESI308B Fuse Buddy Current Loops for convenient circuit amperage readings directly at the fuse box.

Applications

This 600 Amp current probe is an indispensable tool for professional technicians performing diagnostics on starting and charging systems. Its robust capabilities also extend to advanced applications, such as testing relative compression when utilized with a lab scope or graphing meter. The included Fuse Buddy Current Loops significantly enhance efficiency by allowing quick and direct measurement of circuit amperage at the fuse panel, streamlining troubleshooting processes for various electrical issues.

Specifications

• Output: 1mV/Amp
