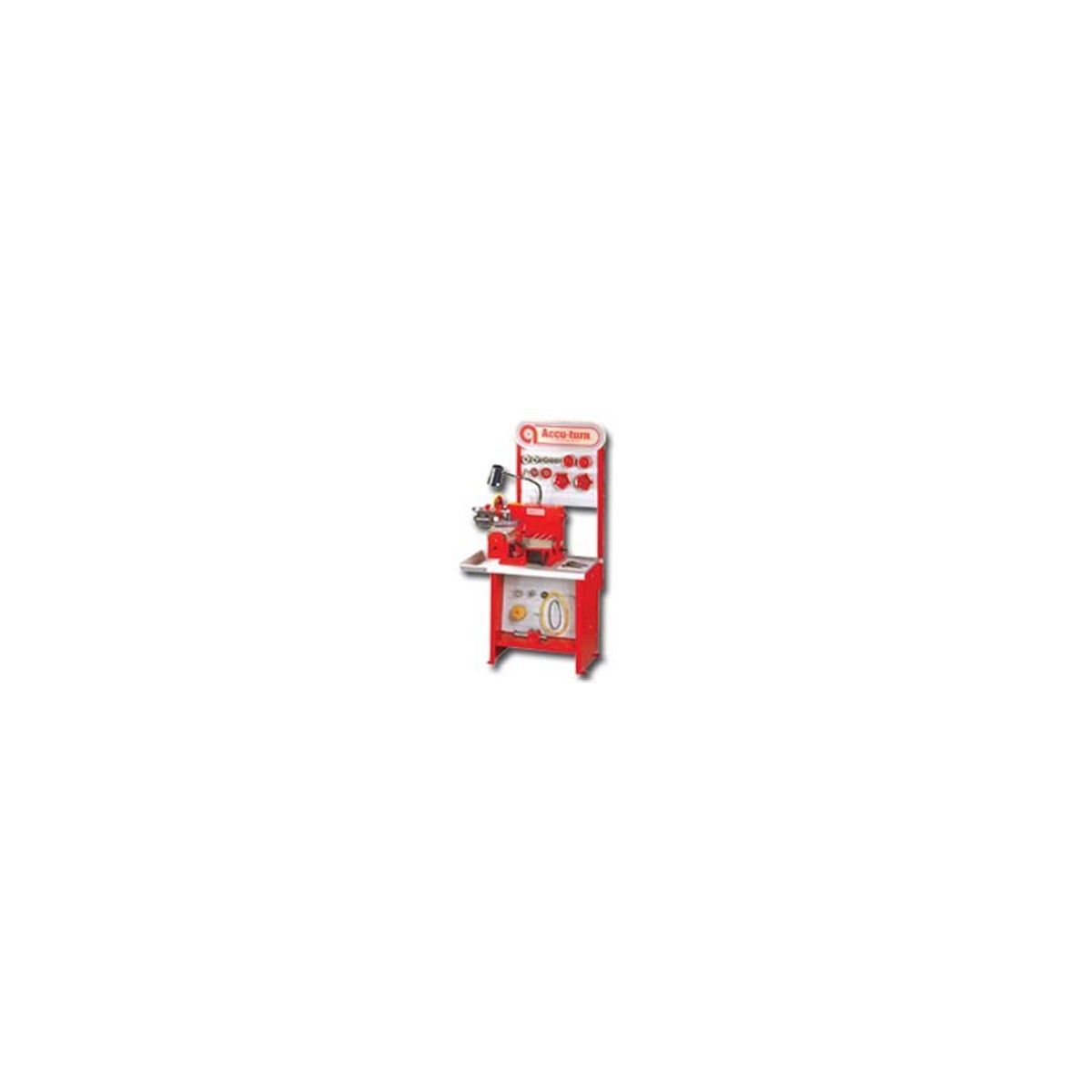

Combination Brake Lathe - Accu-turn

The Accu-turn 8922 Combination Brake Lathe is a robust and versatile machine designed for professional automotive and industrial service environments. This unit effectively resurfaces drums, rotors, and flywheels for most passenger cars and light trucks, providing precise machining crucial for optimal brake performance. Engineered for reliability and consistent results, the 8922 is an essential tool for any shop focused on quality brake maintenance.

Key Features

• Versatile Machining Capabilities: Processes passenger car and light truck drums, rotors, and flywheels with the included standard accessory group (434658).
• Professional-Grade Capacity: Handles rotors up to 24 inches in diameter and drums up to 28 inches, accommodating a wide range of vehicle applications.
• Precision Control: Offers feeds per revolution of 0.0030" for rotors and 0.0046" for drums, ensuring smooth and accurate material removal.
• High Load Capacity: Supports up to 150 lbs. (68 kg) on the standard arbor and an impressive 300 lbs. (136 kg) with an optional heavy-duty arbor, suitable for larger components.
• Durable Motor: Powered by a 1 HP (0.700 kW) motor, delivering consistent performance for demanding resurfacing tasks.
• Expandable Functionality: Designed to integrate with optional attachments, extending its capabilities for specialized applications (attachments sold separately).

Applications

The Accu-turn 8922 Combination Brake Lathe is ideal for automotive repair shops, fleet maintenance facilities, and industrial service centers. It is proficient in resurfacing brake components for a diverse fleet, from standard passenger vehicles to light-duty commercial trucks. This lathe ensures that brake drums, rotors, and flywheels meet critical specifications, helping technicians restore braking efficiency and extend component life.

Specifications

• Power Requirements: 115 Volt, 50/60 Hertz, 1 Phase, 14.50 AMPS
• Rotor Capacity:
  • Diameter: 4" - 24" (152 - 711 mm)
  • Maximum Width of Surface: 4-1/2" (114 mm)
  • Maximum Thickness: 2-1/4" (57 mm)
• Drum Capacity:
  • Diameter: 6" - 28" (152 - 711 mm)
  • Depth of Cut: 6" (152 mm)
• Flywheel (Flat or Stepped) Capacity:
  • Diameter: 6" - 24" (152 - 610 mm)
  • Friction Surface Capacity: 6" (152 mm)
• Maximum Component Weight:
  • On Standard Arbor: 150 lbs. (68 kg)
  • On Heavy-Duty Arbor (optional): 300 lbs. (136 kg)
• Spindle Speed: 105 RPM
• Feeds Per Revolution:
  • Rotor: 0.0030" (0.077 mm)
  • Drum: 0.0046" (0.117 mm)
• Motor: 1 HP (0.700 kW)
• Net Weight: 489 lbs. (221.8 kg)
• Shipping Gross Weight: 530 lbs. (240.4 kg)

(Bench sold separately)
