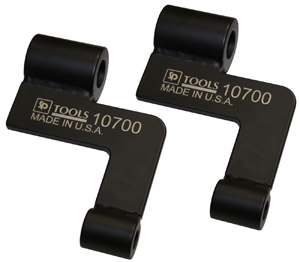

Lexus Engine Brackets - Schley Products, Inc

This unique tool was designed to allow the technician to support the engine while the subframe is removed. Our support brackets bolt where the subframe attaches to the chassis and where the motor mounts bolt to the engine. The sub frame needs to be removed to access the oil pan. The most common job that requires you to remove the sub frame is to R&R the oil pan or timing cover seals. Made for the GR engines these brackets will save you time and money.
Works on:

2006 and later IS250 2WD

2006 and later IS350 2WD

2006 GS 300 2WD

2007 and later GS350 2WD

Small compact size

Easy to install and remove when job is done

Allows open access to top and bottom of the engine

No jack stand to hinder lowering the car

No cross bar hanger needed above the engine blocking access to the manifold or heads
