What is a Heli-Coil thread repair insert, and when should I use one?

A Heli-Coil is a precision-formed, coiled wire insert made of stainless steel used to repair stripped or damaged threads in metal, plastic, or composite materials. They are ideal for situations where the original threads have failed due to wear, corrosion, or over-tightening. Installing a Heli-Coil provides stronger, more durable threads than the original, preventing future failures and extending the life of the component. They're commonly used in automotive engine repair, machinery maintenance, and other applications where reliable threaded connections are critical.

What thread types are available in Heli-Coil kits?

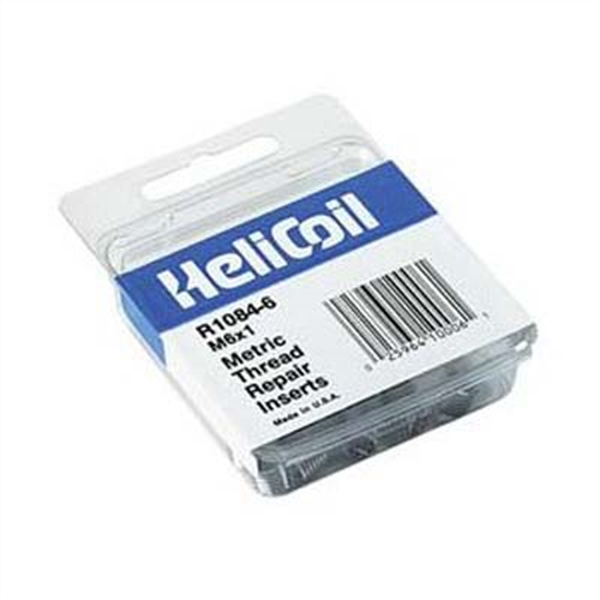

Heli-Coil kits are available for a wide variety of thread types, including both inch (coarse and fine) and metric (coarse and fine) threads. It's important to select a kit that matches the original thread size and pitch of the damaged hole. For example, we carry kits like the Metric Coarse Thread Repair Kit - M6x1 x 9.0mm and the Inch Coarse Thread Repair Kit - 5/16-18 x .469. Always double-check the thread specifications before ordering to ensure compatibility.

What does a typical Heli-Coil thread repair kit include?

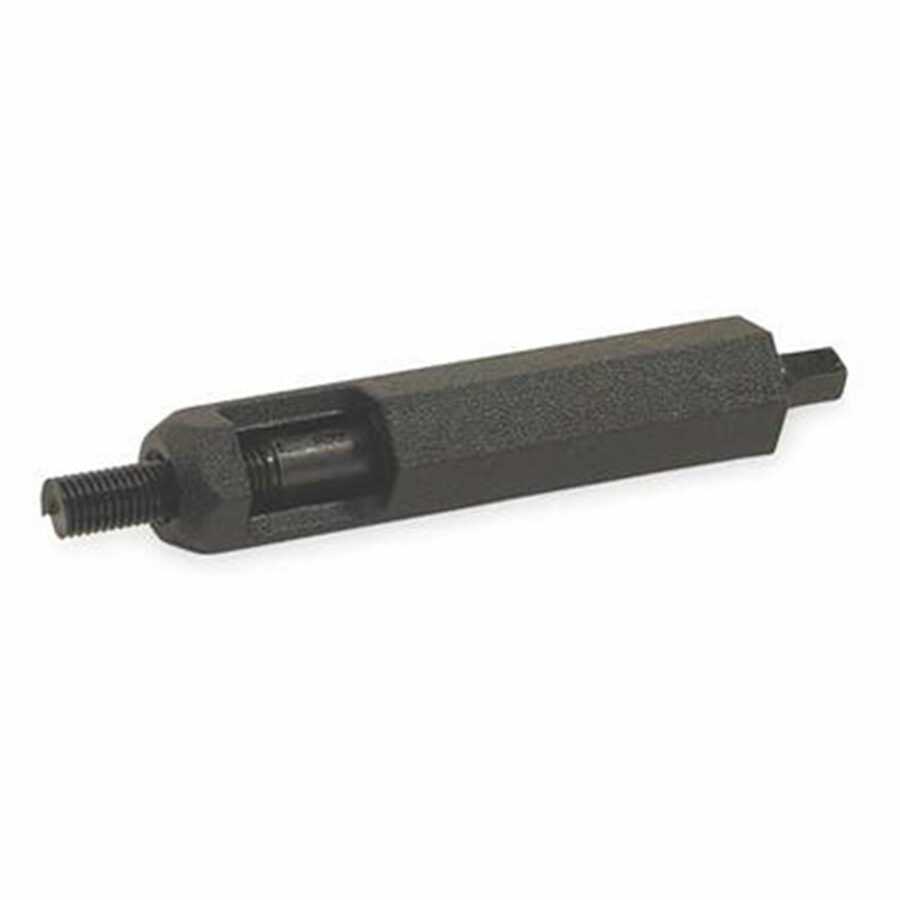

A standard Heli-Coil thread repair kit typically includes a supply of Heli-Coil inserts, a tap to prepare the damaged hole, an installation tool to wind the insert into the tapped hole, and a tang break-off tool to remove the insert's installation tang. The tap creates the correct internal thread form to accept the coil. Some kits, like the Heli Coil Products Metric Fine Thread Repair Kit - M12x1.25 x 18.0mm, are specifically designed for certain applications, but the core components remain the same.

How do I determine the correct Heli-Coil insert length for my application?

The ideal Heli-Coil insert length is usually 1 to 1.5 times the diameter of the bolt or screw being used. A longer insert provides greater holding power, but it's crucial to ensure there's enough space to accommodate the insert without bottoming out or interfering with other components. Consider the depth of the original threaded hole and any space constraints when selecting the appropriate insert length. Some applications may benefit from extended reach inserts, such as the Tapersert M14 x 1.25 Long Reach, if the damaged threads are deeper in the hole.

What are Taper Sert inserts and when should I use them?

Taper Sert inserts, like the Heli Coil Products Tapersert M14 x 1.25 Extended Reach, are designed with a tapered external thread to provide a secure, vibration-resistant fit in softer materials or where increased pull-out strength is needed. The tapered design allows for a tighter fit and greater surface contact within the tapped hole. They're often used in applications where standard Heli-Coils might not provide sufficient holding power, or where the base material is prone to thread loosening due to vibration or thermal cycling.

Can Heli-Coil inserts be used in spark plug holes?

Yes, Heli-Coil inserts are commonly used to repair damaged spark plug threads in cylinder heads. Special spark plug repair kits are available that include the correct tap size and insert length for spark plug applications. When repairing spark plug threads, it's crucial to use a kit specifically designed for that purpose to ensure proper spark plug seating and heat transfer. Make sure to follow the kit instructions carefully to avoid damaging the cylinder head.

What is the difference between a fine thread and a coarse thread Heli-Coil kit, and how do I choose the right one?

Fine thread Heli-Coil kits have more threads per inch (or millimeter) compared to coarse thread kits. Fine threads generally offer greater strength and are less likely to loosen under vibration, but they are also more susceptible to cross-threading and damage if not properly installed. Coarse threads are more forgiving and easier to install. Choosing the right kit depends on the original thread type in the component you are repairing. If the original threads were fine, use a fine thread kit; if they were coarse, use a coarse thread kit. Always verify the thread pitch before ordering.

What are some best practices for installing Heli-Coil inserts to ensure a strong and reliable repair?

To ensure a strong and reliable Heli-Coil repair, start by carefully cleaning the damaged threads and using the correct tap size to create new threads. Apply a light coating of cutting oil to the tap to ease the process and prevent binding. Install the insert using the appropriate installation tool, making sure not to over-tighten it. Finally, break off the installation tang with the provided tool. Ensure the tang is fully removed to prevent interference with the mating component. Following these steps will help create a durable and long-lasting thread repair.
