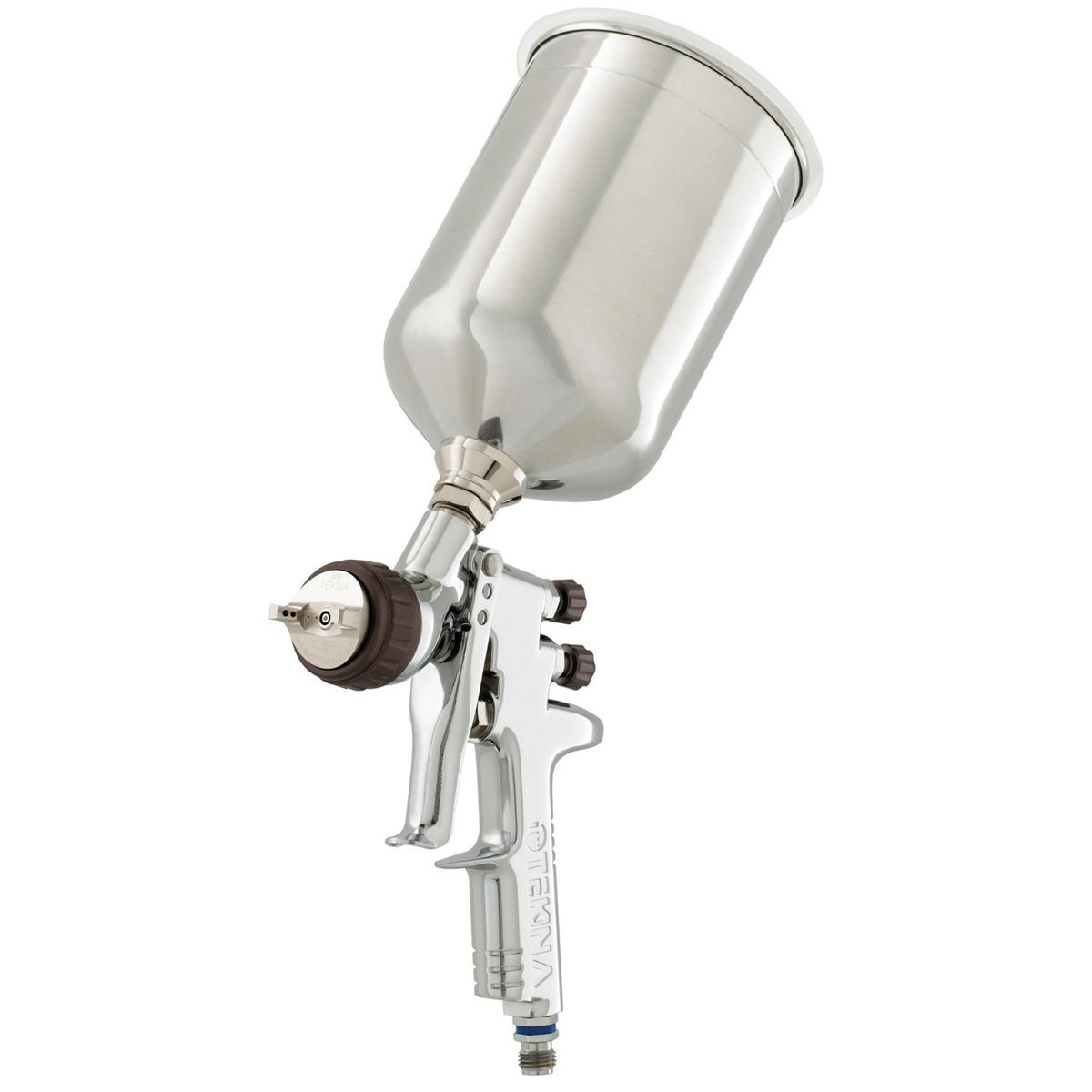

Quantum Ultra Light Gravity Feed Spray Gun - 1.4 mm Nozzle - Astro Pneumatic

Part #: QUL114

  • Gravity feed action lets fluid flow downward using less air and offering better control over atomization and fluid output
  • General purpose air cap sprays enamels, lacquers, metallics and urethanes
  • Full range of viscosities from fine surface finish to heavy body coating
  • Aluminum gun body and air cap for durability and long lasting performance
  • One pint nylon cup with "drip check" device to prevent spillage from the vent hole
  • NO GASKETS - manufactured with high tolerance CNC machined parts
  • Unibody head construction
  • Patented cap nozzle reduces overspray
  • Comes with 600cc Plastic cup and gun wrench
Features:
  • Cup capacity: 600ml
  • Nozzle Size: 1.4mm
  • Operation Pressure: 30-70psi
  • Net Weight: 1.2lb (530g)
  • Dimensions W x H: 6" x 13-1/2"
  • Avg. Air Consumpt.: 6-12cfm
  • Air Inlet Thread NPT: 1/4"
  • Required Compressor: 3hp
  • Max. Pattern at 8" Distance: 8-1/4"/210mm
Optional Accessories:
  • #GF14C - 600cc (1pt. 4oz.) Plastic Cup Assembly
  • #354006 - 600cc (1pt. 4oz.) Aluminum Cup Assembly
  • #GF14S01NS - 1.4mm nozzle size
  • #GF20S01NS - 2.0mm nozzle size
Astro Pneumatic QUL114 Quantum Ultra Light Gravity Feed Spray Gun - 1.4 mm Nozzle
Browse Gravity Feed Guns
  • Astro Pneumatic
    Other products
    Astro Pneumatic Homepage
  • Model: 110809
  • Shipping Weight: 1.2lbs
  • UPC: 452270087807
  • Manufacturers Part #: QUL114
  • Manufactured by: Astro Pneumatic
  • Also Known As: AOQUL114, ASTQUL114, AST-QUL114
