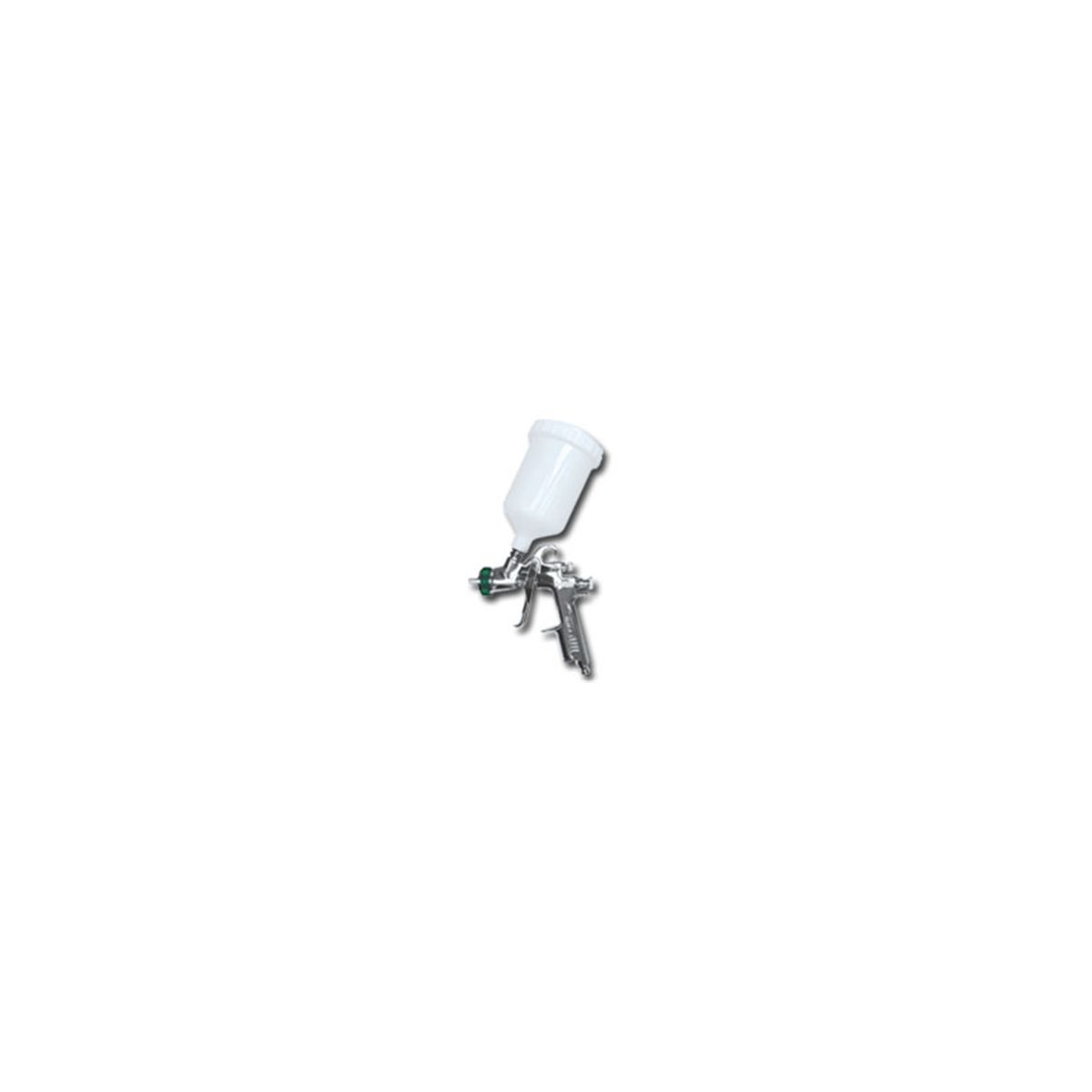

LVLP Gravity Feed Spray Gun - 1.4mm - Astro Pneumatic

The Astro Pneumatic EVO4014 LVLP (Low Volume-Low Pressure) Gravity Feed Spray Gun is engineered for professional automotive and industrial painting applications where precision and material efficiency are paramount. This 1.4mm spray gun utilizes advanced LVLP technology, allowing for superior atomization of coatings with reduced air consumption and significantly less overspray, resulting in a smooth, high-quality finish.

Key Features

• Advanced Atomization: Features a patented cap nozzle design that finely atomizes paint, ensuring a uniform and smooth finish with minimal material waste.
• Material Efficiency: Decreased overspray translates to significant cost savings, potentially reducing paint material consumption by 20-30%.
• Low Air Consumption: Operates efficiently with a lower CFM consumption (average 9.6-9.8 cfm), making it suitable for a wider range of compressors, including those with 3 hp.
• Waterborne Compatibility: Equipped with a durable stainless steel needle and fluid tip, ensuring compatibility with both traditional solvent-based and modern waterborne products.
• Optimal Control: Maintains a precise operating pressure of 25 psi, providing excellent control over paint application and pattern.
• Lightweight Design: Weighing just 1.02 lbs (net), this spray gun reduces user fatigue during extended use.

Applications

The EVO4014 is ideal for professional technicians and mechanics involved in automotive refinishing, panel repair, and general industrial coating tasks. Its ability to finely atomize a variety of paints and clear coats makes it suitable for achieving showroom-quality finishes on vehicles, machinery, and other fabricated components. This tool is particularly effective for base coats, clear coats, and sealers where a consistent, defect-free application is critical.

Specifications

• Cup Capacity: 600ml
• Nozzle Size: 1.4mm
• Operation Pressure: 25 psi
• Net Weight: 1.02 lb
• Average Air Consumption: 9.6-9.8 cfm
• Air Inlet Thread NPT: 1/4 in.
• Required Compressor: 3 hp
• Max. Pattern at 8 in. Distance: 8.7 - 9 in.
• Air Cap Output: 10 psi
