What is a fuel injection test set and what types of tests can I perform with it?

A fuel injection test set is a collection of tools and adapters designed to diagnose issues within a vehicle's fuel injection system. These kits typically include a pressure gauge, hoses, and various adapters to connect to different fuel system components. With a fuel injection test set, you can measure fuel pressure at different points in the system, check for fuel leaks, and assess the performance of the fuel pump, pressure regulator, and fuel injectors. Some advanced kits, like the Mityvac MV5515, even allow for detecting leaking injectors directly.

What should I consider when choosing a fuel injection test set?

When selecting a fuel injection test set, consider the types of vehicles you'll be working on. Ensure the kit includes adapters compatible with those vehicles' fuel systems; some kits, like the S & G Tool Aid 58600, offer specific adapters for different fuel rail sizes. Also, check the pressure range of the gauge to ensure it matches the fuel pressure specifications of the vehicles you'll be testing. A comprehensive kit, like the Actron CP7838 Professional Fuel Pressure Test Kit, will offer a wider range of adapters and capabilities for diverse applications.

Can I use a fuel injection test set on older CIS (Continuous Injection System) fuel systems?

Yes, some fuel injection test sets are compatible with older CIS fuel injection systems, but compatibility depends on the specific adapters included in the kit. CIS systems often require specific fittings to connect to the fuel lines. Review the kit's contents to ensure it includes the necessary adapters, or if adapters are available separately. Always consult your vehicle's service manual for the correct testing procedures and fuel pressure specifications for your CIS system.

What adaptors might I need, and what should I know about fuel line connections?

Fuel line connections vary significantly across vehicle makes and models, requiring a variety of adapters for proper testing. Common adapter types include threaded fittings, quick-connect fittings, and banjo bolts. When connecting to fuel lines, ensure the adapter is properly sealed to prevent fuel leaks, which can be dangerous. Always relieve fuel pressure before disconnecting any fuel lines, and refer to the vehicle's service manual for the correct procedure. An Actron Ford Fuel Line Adapter may be required for some Ford vehicles.

How do I safely relieve fuel pressure before using a fuel injection test set?

Relieving fuel pressure is crucial for safety before disconnecting any fuel lines or components. The procedure varies depending on the vehicle. Some vehicles have a Schrader valve on the fuel rail where you can carefully bleed off pressure into a suitable container. Others may require disconnecting the fuel pump relay and running the engine until it stalls. Always consult the vehicle's service manual for the specific procedure for your vehicle to avoid fuel spillage and potential fire hazards. Wear appropriate safety glasses and gloves.

What safety precautions should I take when working with fuel injection systems?

Working with fuel injection systems requires strict adherence to safety precautions due to the flammability of gasoline. Always work in a well-ventilated area away from open flames or sources of ignition. Wear safety glasses and gloves to protect yourself from fuel splashes. Have a fire extinguisher readily available. Properly dispose of any fuel-soaked rags or materials to prevent spontaneous combustion. If you're unsure about any procedure, consult a qualified mechanic.

What is the difference between a fuel pressure test kit and a fuel injector cleaning kit?

A fuel pressure test kit, like the Actron CP7838, is designed to measure the pressure within the fuel system to diagnose issues with the fuel pump, regulator, or leaks. It doesn't clean the injectors. A fuel injector cleaning kit, on the other hand, is specifically designed to clean fuel injectors, removing deposits that can impede their performance. While some comprehensive kits may include components for both testing and cleaning, they are generally separate tools with distinct functions. You may need both for complete fuel system maintenance.

Are there specific kits for testing fuel pressure on throttle body injection (TBI) systems?

While many fuel pressure test kits can be used on TBI systems, you may need a specific adapter, such as the Actron TBI `T` Fitting 0180-000-1320, to properly connect to the TBI unit. TBI systems often have unique fuel line connections compared to multi-port fuel injection systems. Check the kit's compatibility or adapter options to ensure it includes the necessary fittings for your specific TBI application. Always verify fitment before attempting to connect the test kit.

Search

Manufacturers [more]

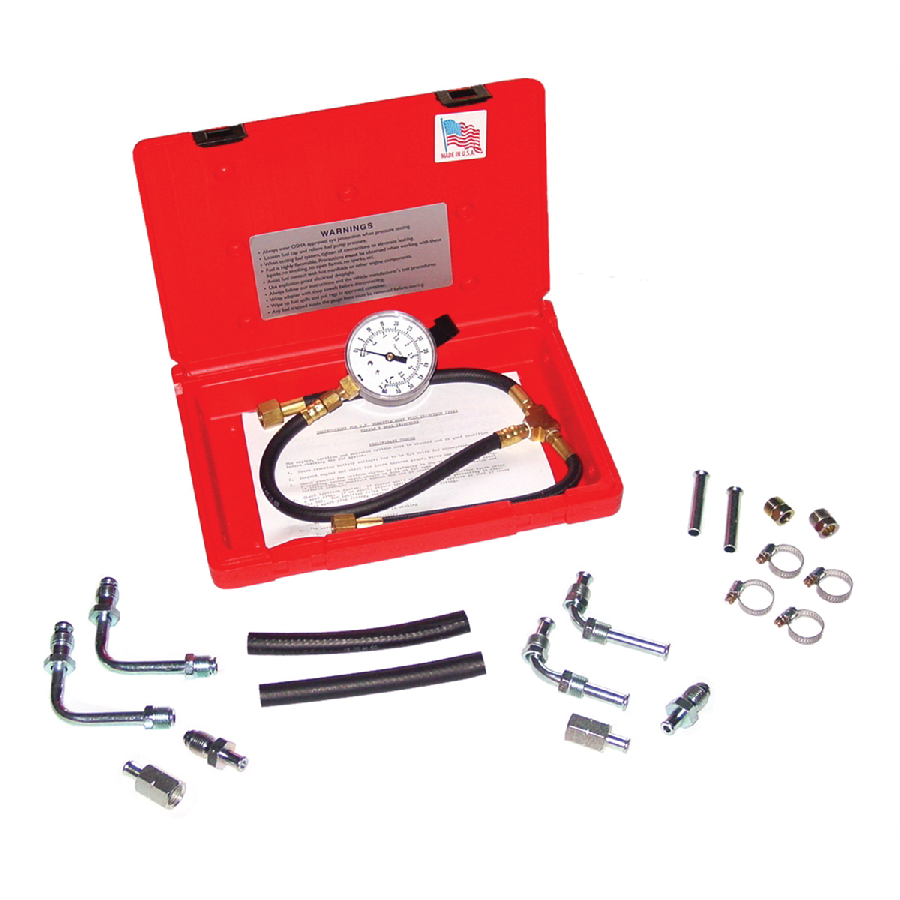

Lang | TU23PB | Fuel Injection Tester - GM TBI

Name: Fuel Injection Tester - GM TBI
Brand: Lang
SKU: 55243
Price: 86.25 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

This specialized diagnostic tool, TU23PB, weighs 2.95 lbs, making it a portable solution for automotive tasks. It is specifically engineered for General Motors Throttle Body Injection (GM TBI) systems.

Key Features

Dedicated GM TBI Compatibility: Designed specifically for GM Throttle Body Injection systems, ensuring precise fit and accurate diagnostic readings.
Efficient Fuel System Diagnostics: Accurately tests and diagnoses various components within GM TBI fuel injection systems.
Durable Construction: Built to withstand the demands of professional automotive service environments.
Lightweight Design: At just 2.95 lbs, this tester is easy to transport and handle during diagnostic procedures.

Applications

The Lang Fuel Injection Tester is essential for diagnosing and troubleshooting fuel system-related issues in vehicles equipped with General Motors Throttle Body Injection. It is ideal for use in:

Automotive repair shops performing routine maintenance and diagnostics.
Specialized service centers addressing complex fuel injection problems.
Individual mechanics and enthusiasts working on GM TBI-equipped vehicles.

Benefits

Accurate Problem Identification: Pinpoints issues within GM TBI fuel systems quickly, reducing diagnostic time and improving repair efficiency.
Optimized Engine Performance: Ensures proper fuel delivery and pressure, contributing to a vehicle's optimal performance and fuel economy.
Reduced Repair Costs: Helps avoid unnecessary part replacements by precisely identifying the root cause of fuel injection malfunctions.
User Confidence: Provides reliable and consistent results, giving technicians and users confidence in their diagnostic findings and repairs.

Other products
Lang Homepage
Model: 55243
Shipping Weight: 2.95lbs
Manufacturers Part #: TU23PB
Manufactured by: Lang
Also Known As: STATU23PB

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$86.25

Add to Cart:

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

2 people have this item in their cart!

Write Review

This product was added to our catalog on Friday 14 January, 2000.
