What are the common types of stud extractors, and when is each most appropriate?

Stud extractors come in several designs, each suited for different situations. Spiral extractors, like some Hanson models, bite into the stud as you turn, working well for moderately stuck studs. Impact stud removers, such as the Mayhew Tools 29895, use impact force to loosen severely seized studs. For broken taps, Walton extractors use hardened steel fingers that fit into the flutes of the tap. The best choice depends on the severity of the corrosion and accessibility of the stud.

How do I choose the right size extractor for my broken stud or bolt?

Selecting the correct size is crucial for effective stud removal. Extractors are typically sized by the diameter of the bolt or stud they are intended to remove. For example, a screw extractor might be designed for a 1/4" bolt diameter. Always refer to the manufacturer's specifications to ensure compatibility. Using an undersized extractor can damage the tool or the stud, while an oversized one may not grip properly. Some Assenmacher Specialty Tools stud installers also function as removers and are sized by the stud diameter they fit.

What is a 'shake-n-break' tool and when would I use it?

A 'shake-n-break' tool, like the Wivco TH28000, is an air-powered impact tool designed to loosen corroded or seized fasteners. It delivers rapid, short bursts of rotational force to help break the bond between the fastener and the surrounding material without completely rounding off the fastener head. These are particularly useful in high-corrosion environments where traditional methods might fail or damage the workpiece.

Can stud extractors be used on both standard (SAE) and metric fasteners?

Yes, many stud extractors can be used on both standard (SAE) and metric fasteners, but it's essential to select the correct size. Some extractors are designed with a range of compatibility that encompasses both. Always check the product specifications to ensure the extractor's size and thread pitch are appropriate for the fastener you're trying to remove. Using the wrong size can damage the fastener and the tool.

How do multi-spline extractors work, and when should I use one?

Multi-spline extractors, such as the Hanson screw extractors, are designed to bite aggressively into damaged or broken fasteners. You typically drill a pilot hole into the fastener, then insert the extractor and turn it counterclockwise. The splines grip the inside of the hole, allowing you to unscrew the fastener. These are best used when the head of the fastener is already damaged or broken off, making it impossible to use a standard socket or wrench.

What safety precautions should I take when using stud extractors?

Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when using stud extractors. Be cautious when applying heat, as it can cause burns or damage surrounding components. Ensure the workpiece is securely held to prevent movement during extraction. If using power tools, follow the manufacturer's safety guidelines and never exceed the tool's recommended RPM. If the stud doesn't budge with moderate force, stop and reassess the situation to avoid breaking the extractor or further damaging the workpiece.

What is the best way to prepare a broken stud for extraction?

Proper preparation is key to successful stud extraction. First, clean the area around the broken stud to remove any dirt or debris. Center-punch the stud as precisely as possible to guide your drill bit. Use a drill bit size recommended by the extractor manufacturer to create a pilot hole. Applying penetrating oil and allowing it to soak for some time can also help loosen the stud before attempting extraction. If possible, apply heat to the surrounding area to help break the corrosion bond (exercise caution and use appropriate PPE).

What should I do if the stud extractor breaks inside the stud?

If a hardened steel extractor breaks inside the stud, removal can be very difficult. Unlike softer steel, hardened extractors cannot be easily drilled out. One option is to use a left-handed drill bit to attempt to 'walk' the broken piece out. Another option is a EDM (Electrical Discharge Machining) which is a specialized process that erodes the broken piece. Prevention is key; using the correct size extractor, applying penetrating oil, and avoiding excessive force can help prevent breakage in the first place.

Vermont American [21829] Screw Extractor/Drill Set Screw Extractor/Drill Set by

Name: Screw Extractor/Drill Set
Brand: Vermont American
SKU: 125221
Price: 20.06 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

Search

Manufacturers [more]

Screw Extractor/Drill Set - Vermont American

Part #: 21829

larger image

Specifications

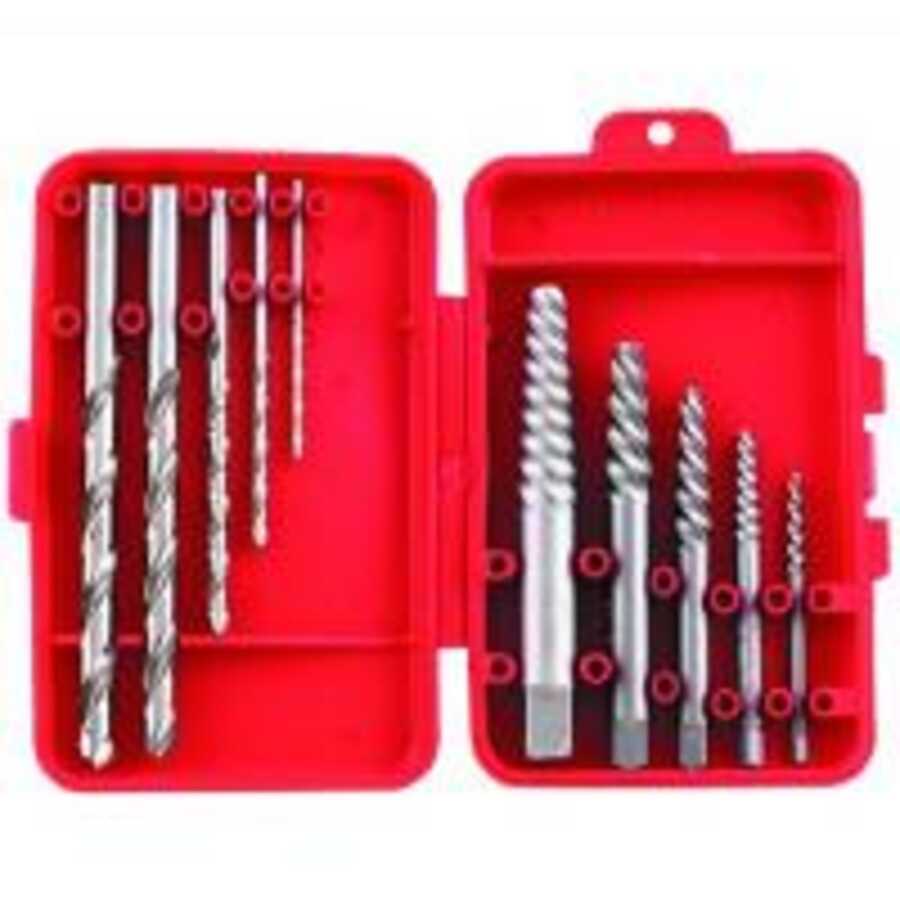

The Vermont American Screw Extractor/Drill Set, model 21829, is designed for efficient removal of broken or stripped fasteners. This set includes a combination of drill bits and screw extractors to address various fastener extraction needs. The precise weight and dimensions of the complete set may vary.

Key Features

Durable Construction: Manufactured by Vermont American, ensuring reliability and extended tool life.
Integrated Drill Bits: Features specialized drill bits designed to create pilot holes for extractor insertion.
Reverse Spiral Flutes: Screw extractors are engineered with aggressive left-hand spiral flutes for maximum gripping power and effective removal of broken screws.
Variety of Sizes: Includes multiple sizes to handle a range of common screw and bolt dimensions.
High-Speed Steel (HSS) Components: Components are typically constructed from high-speed steel for drilling and extracting hardened fasteners.

Applications

This Screw Extractor/Drill Set is suitable for use in various applications requiring the removal of damaged fasteners. It is commonly used by professionals and DIY enthusiasts for tasks such as:

Extracting broken screws, bolts, and studs from metal, wood, and plastic materials.
Removing fasteners with stripped, rounded, or corroded heads.
Repairing machinery, automotive components, and household items.
Performing general maintenance and repair work where fastener extraction is necessary.

Benefits

Efficient Fastener Removal: Provides a reliable solution for extracting broken or stripped fasteners, preventing further damage to materials or equipment.
Time-Saving: Reduces the time and effort typically associated with removing damaged screws and bolts, enhancing productivity.
Versatile Use: The combination of drill bits and extractors allows for addressing a wide array of fastener sizes and types.
Prevents Damage: Minimizes the risk of damaging surrounding work surfaces or threaded holes during the extraction process.
Increased Productivity: Offers a practical tool for professionals and hobbyists, improving overall workflow and project completion.

Special Order Contact For Details

$20.06

Add to Cart:

Other products
Vermont American Homepage
Model: 125221
Manufacturers Part #: 21829
Manufactured by: Vermont American
Also Known As: VA21829, VER21829

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

This product was added to our catalog on Thursday 04 August, 2011.
