What are the common types of stud extractors, and when is each most appropriate?

Stud extractors come in several designs, each suited for different situations. Spiral extractors, like some Hanson models, bite into the stud as you turn, working well for moderately stuck studs. Impact stud removers, such as the Mayhew Tools 29895, use impact force to loosen severely seized studs. For broken taps, Walton extractors use hardened steel fingers that fit into the flutes of the tap. The best choice depends on the severity of the corrosion and accessibility of the stud.

How do I choose the right size extractor for my broken stud or bolt?

Selecting the correct size is crucial for effective stud removal. Extractors are typically sized by the diameter of the bolt or stud they are intended to remove. For example, a screw extractor might be designed for a 1/4" bolt diameter. Always refer to the manufacturer's specifications to ensure compatibility. Using an undersized extractor can damage the tool or the stud, while an oversized one may not grip properly. Some Assenmacher Specialty Tools stud installers also function as removers and are sized by the stud diameter they fit.

What is a 'shake-n-break' tool and when would I use it?

A 'shake-n-break' tool, like the Wivco TH28000, is an air-powered impact tool designed to loosen corroded or seized fasteners. It delivers rapid, short bursts of rotational force to help break the bond between the fastener and the surrounding material without completely rounding off the fastener head. These are particularly useful in high-corrosion environments where traditional methods might fail or damage the workpiece.

Can stud extractors be used on both standard (SAE) and metric fasteners?

Yes, many stud extractors can be used on both standard (SAE) and metric fasteners, but it's essential to select the correct size. Some extractors are designed with a range of compatibility that encompasses both. Always check the product specifications to ensure the extractor's size and thread pitch are appropriate for the fastener you're trying to remove. Using the wrong size can damage the fastener and the tool.

How do multi-spline extractors work, and when should I use one?

Multi-spline extractors, such as the Hanson screw extractors, are designed to bite aggressively into damaged or broken fasteners. You typically drill a pilot hole into the fastener, then insert the extractor and turn it counterclockwise. The splines grip the inside of the hole, allowing you to unscrew the fastener. These are best used when the head of the fastener is already damaged or broken off, making it impossible to use a standard socket or wrench.

What safety precautions should I take when using stud extractors?

Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves, when using stud extractors. Be cautious when applying heat, as it can cause burns or damage surrounding components. Ensure the workpiece is securely held to prevent movement during extraction. If using power tools, follow the manufacturer's safety guidelines and never exceed the tool's recommended RPM. If the stud doesn't budge with moderate force, stop and reassess the situation to avoid breaking the extractor or further damaging the workpiece.

What is the best way to prepare a broken stud for extraction?

Proper preparation is key to successful stud extraction. First, clean the area around the broken stud to remove any dirt or debris. Center-punch the stud as precisely as possible to guide your drill bit. Use a drill bit size recommended by the extractor manufacturer to create a pilot hole. Applying penetrating oil and allowing it to soak for some time can also help loosen the stud before attempting extraction. If possible, apply heat to the surrounding area to help break the corrosion bond (exercise caution and use appropriate PPE).

What should I do if the stud extractor breaks inside the stud?

If a hardened steel extractor breaks inside the stud, removal can be very difficult. Unlike softer steel, hardened extractors cannot be easily drilled out. One option is to use a left-handed drill bit to attempt to 'walk' the broken piece out. Another option is a EDM (Electrical Discharge Machining) which is a specialized process that erodes the broken piece. Prevention is key; using the correct size extractor, applying penetrating oil, and avoiding excessive force can help prevent breakage in the first place.

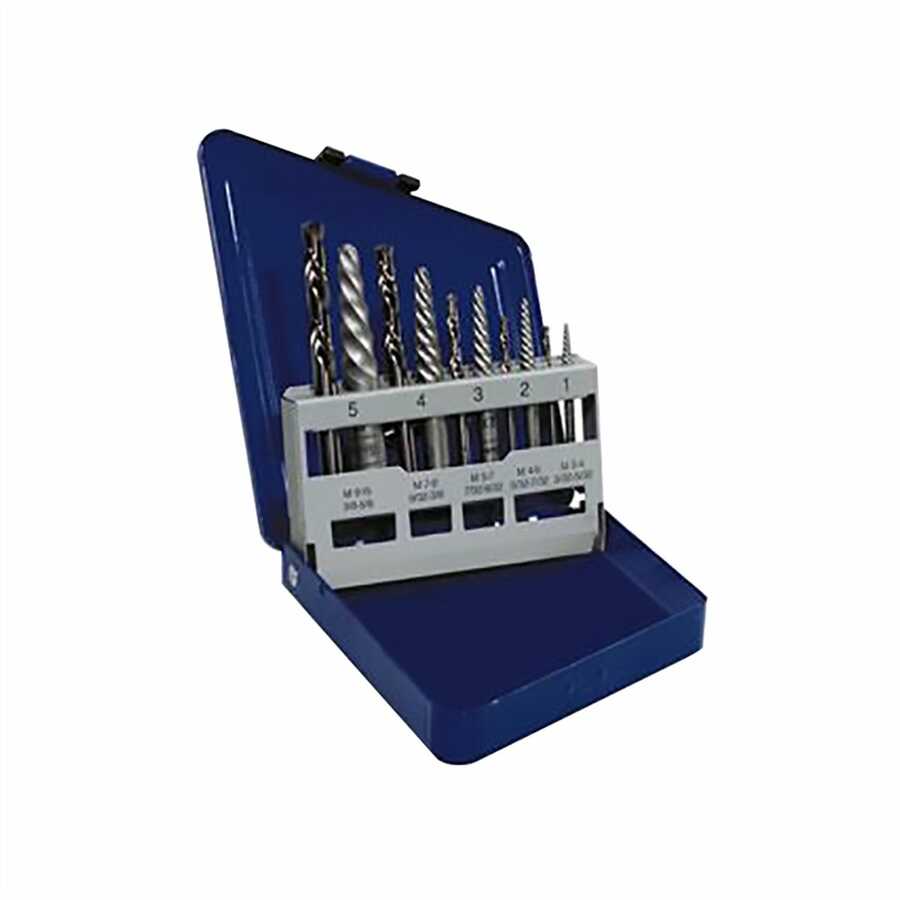

Hanson [11119] 10-Pc Spiral & Drill Bit Screw Extractor Set 10-Pc Spiral & Drill Bit Screw Extractor Set

Name: 10-Pc Spiral & Drill Bit Screw Extractor Set
Brand: Hanson
SKU: 73502
Price: 98.33 USD
Availability: InStock
Rating: 5 (1 reviews)

Search

Manufacturers [more]

10-Pc Spiral & Drill Bit Screw Extractor Set - Hanson

Part #: 11119

larger image

Specifications

Manufacturer: Irwin Industrial Tool, a Stanley Black & Decker, Inc. brand. Model Number: 11119 Product Name: 10-Pc Spiral & Drill Bit Screw Extractor Set Weight: 0.85 lbs Dimensions: 6.8 x 4.45 x 0.85 inches Set Contents: This comprehensive 10-piece set includes a combination of spiral screw extractors and corresponding drill bits, designed for efficient removal of broken or stripped fasteners.

Key Features

Dual-Purpose Design: Each set combines precisely sized drill bits for creating pilot holes and spiral extractors for gripping and removing stubborn screws and bolts.
High-Quality Construction: Crafted from durable, hardened steel, ensuring strength and longevity for demanding extraction tasks.
Aggressive Left-Hand Spiral: The extractors feature an aggressive, left-hand spiral design, engineered to embed securely into the fastener for maximum gripping power and efficient removal.
Precision Drilling: Included drill bits allow for accurate drilling of pilot holes, ensuring optimal engagement of the spiral extractor.
Versatile Sizing: The 10-piece set offers a range of sizes, accommodating various common fastener dimensions.

Applications

The 10-Pc Spiral & Drill Bit Screw Extractor Set is designed for use in a wide array of situations requiring the removal of damaged fasteners. It is suitable for extracting stripped screws, broken bolts, and other compromised fasteners from materials such as metal, wood, and plastic. Common applications include:

Automotive repair and maintenance.
Home improvement and DIY projects.
Machinery repair and assembly.
Woodworking and carpentry tasks.
Plumbing and electrical installations.

Benefits

Efficient Fastener Removal: Effectively removes broken bolts and stripped screws, saving time and effort compared to alternative methods.
Prevents Further Damage: Allows for the extraction of damaged fasteners without causing additional harm to the surrounding material or component.
Increased Productivity: Quickly resolves issues with compromised fasteners, enabling projects to proceed smoothly and on schedule.
Reduces Frustration: Offers a reliable solution to a common and challenging problem, making difficult repair tasks more manageable.
Cost-Effective Solution: Extends the life of parts and tools by successfully removing broken components, eliminating the need for costly replacements.
Reliable Performance: Provides a secure grip and dependable force for consistent success in extracting even the most stubborn fasteners.

Only 8 left in stock - order soon Inventory available from other suppliers, prices may be different

$98.33

Add to Cart:

Other products
Hanson Homepage
Model: 73502
Shipping Weight: 0.85lbs
Manufacturers Part #: 11119
Manufactured by: Hanson
Also Known As: HN11119, HAN11119, HA11119, AHN-11119
