A/C Disconnect Tools

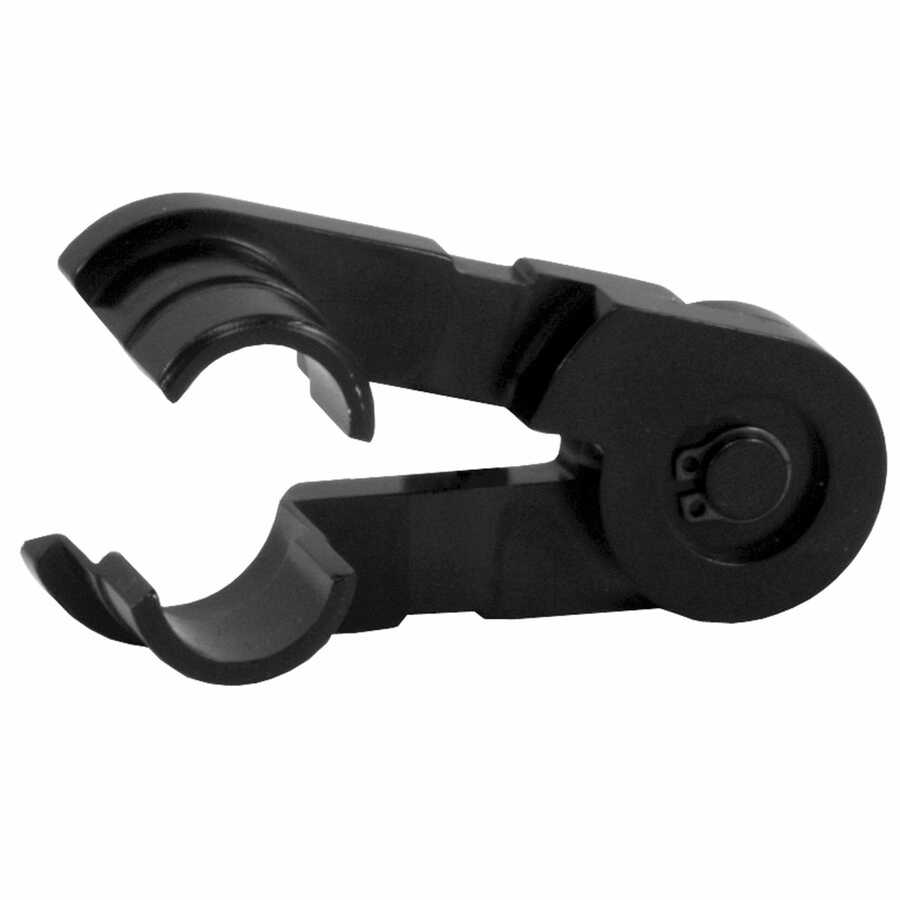

Many vehicles join A/C lines, fuel lines and transmission cooler lines with spring lock couplings or quick connect fittings that only come apart with the right release tool. A disconnect tool slides into the fitting, pushes back the spring or locking tabs and lets the line pull free without bending tubing or breaking connectors. Auto repair technicians, A/C specialists, transmission shops and fleet shops use them during A/C repairs, fuel pump and filter jobs and radiator or cooler line service.
How spring lock couplings work
A spring lock coupling has a garter spring inside a cage on one side of the joint. When the line is pushed together, the flared end of the other tube slips past the spring and is held in place, while O-rings seal the joint. The disconnect tool is a sleeve that fits around the line and slides into the cage, opening the spring so the flared end can pass back out. Quick connect fuel fittings work in a similar way with locking tabs or a retainer.
Choosing the right tool
Disconnect tools are sized to the line, such as 3/8 in., 1/2 in. and 5/8 in., and come in straight and angled styles. Angled tools reach couplings tucked behind other parts. Some tools are made for one make, and some fit both A/C and fuel lines. Sets cover several common sizes in one kit, which suits a general repair shop, while individual tools replace a lost size or add one the set lacks.
Using them
Recover the refrigerant or relieve fuel pressure before opening any line. Clean the fitting, push the line in slightly, slide the tool fully into the coupling, then pull the line apart. Replace O-rings and seals as the service procedure calls for when the joint goes back together.
Brands include OTC, Lisle, Assenmacher, CTA, Cal-Van and Schley. A/C line wrenches, A/C adapters and fittings and other A/C service tools are in the other Auto Air Conditioning Tools categories.
