What is a diesel compression tester and why is it used?

A diesel compression tester is a specialized tool used to measure the pressure within each cylinder of a diesel engine. This test helps diagnose engine problems like worn piston rings, damaged valves, or head gasket leaks. By comparing the compression readings across all cylinders, a mechanic can identify cylinders with abnormally low pressure, pinpointing the source of the problem. Diesel engines rely on high compression to ignite fuel, so a compression test is a critical step in diagnosing starting issues, poor performance, or excessive smoke.

What are the key components of a typical diesel compression tester kit?

A diesel compression tester kit typically includes a pressure gauge, various adapters, and a connecting hose. The pressure gauge displays the cylinder pressure in PSI or bar. The adapters are crucial for connecting the tester to the engine, usually via the glow plug or injector ports. Different adapters are required for various engine makes and models to ensure a proper seal. Some kits, like the American Diesel Compression Test Set w/ Adapters 1-7 (Lang), offer a range of adapters for broader compatibility.

How do I choose the correct adapter for my diesel engine compression tester?

Selecting the correct adapter is essential for an accurate compression test. The adapter must match the thread size and type of the port you're using (typically the glow plug or fuel injector port). Consult your vehicle's service manual or a reliable parts database to determine the correct adapter size. Some adapters, like the S & G Tool Aid Diesel Tester Adapter for Kubota Engines - 10mm, are designed for specific engine families. Always ensure the adapter seals properly to prevent pressure leaks during the test; a loose connection will give you a false reading.

What is the difference between a direct and indirect diesel compression test?

A direct compression test involves removing the glow plugs or fuel injectors and threading the compression tester directly into the cylinder. This provides the most accurate reading. An indirect test, if even possible on a given engine, might involve testing through an adjacent port or using specialized equipment to infer compression. Direct testing is generally preferred for diesel engines due to the higher compression ratios and the need for precise measurements to diagnose issues accurately. Always consult your vehicle's service manual for the recommended testing procedure.

What pressure range should I expect to see on a diesel compression test, and how do I interpret the results?

Diesel engines typically have much higher compression ratios than gasoline engines, so expect to see significantly higher pressure readings. The specific pressure range varies greatly depending on the engine make and model; refer to your vehicle's service manual for the manufacturer's specifications. A reading significantly below the specified range indicates a potential problem such as worn rings, valve issues, or a blown head gasket. Also, pay attention to the consistency of readings across all cylinders; large variations can pinpoint specific areas of concern.

Can I use a gasoline compression tester on a diesel engine?

No, you should not use a gasoline compression tester on a diesel engine. Diesel engines have much higher compression ratios than gasoline engines, often exceeding 300 PSI. A gasoline compression tester is typically not designed to measure pressures that high and could be damaged or provide inaccurate readings. Always use a diesel-specific compression tester like the Mityvac MV5534, which is built to withstand the higher pressures encountered in diesel engines.

What safety precautions should I take when performing a diesel compression test?

Safety is paramount when working with diesel engines. Always disconnect the fuel supply to prevent accidental starting during the test. Wear safety glasses to protect your eyes from fuel spray or debris. Be mindful of hot engine components, as the test is often performed on a warm engine. Ensure the testing area is well-ventilated to avoid inhaling exhaust fumes. Follow all safety guidelines outlined in your vehicle's service manual and the compression tester's instructions.

What are some common mistakes to avoid when using a diesel compression tester?

One common mistake is failing to properly seal the adapter, leading to inaccurate readings. Ensure the adapter is securely threaded into the cylinder head and that any sealing washers are in good condition. Another mistake is not cranking the engine enough times to achieve a stable pressure reading; typically, several compression strokes are needed. Also, remember to release the pressure from the gauge after each cylinder test; some testers, like the S & G Tool Aid Diesel Compression Tester, have a built-in pressure release valve for this purpose.

Search

Manufacturers [more]

Diesel Compression Testers

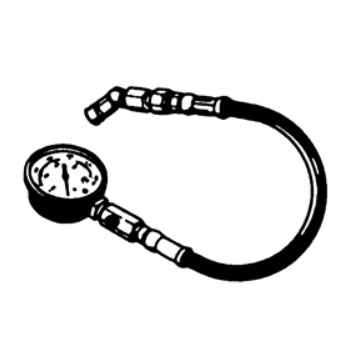

Lang | TU-15-79 | Diesel Compression Test Adapter International MaxxForce

Name: Diesel Compression Test Adapter International MaxxForce
Brand: Lang
SKU: 175279
Price: 102.18 USD
Availability: InStock
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Lang
Model Number: {manufacturers_part_number}
Product Name: Diesel Compression Test Adapter International MaxxForce
Weight: 3.01 lbs
Dimensions: 1 x 1 x 1 inches

Key Features

Specifically engineered for use with International MaxxForce diesel engines, ensuring precise compatibility.
Designed to securely connect a diesel compression tester to the engine.
Constructed for durability to withstand repeated use in demanding workshop environments.

Applications

Used for performing diesel compression tests on International MaxxForce engines.
Essential for diagnostic procedures to identify engine performance issues.
Suitable for automotive technicians and heavy-duty mechanics working on MaxxForce vehicles.

Benefits

Provides accurate compression readings, which are crucial for diagnosing potential engine problems.
Streamlines the engine diagnostic process for International MaxxForce models by ensuring proper connection.
Helps identify critical engine issues such as worn piston rings, faulty valves, or head gasket leaks.
Facilitates reliable engine troubleshooting, contributing to efficient repairs and maintenance.

Other products
Lang Homepage
Model: 175279
Shipping Weight: 1lbs
Manufacturers Part #: TU-15-79
Manufactured by: Lang
Also Known As: KHTU-15-79, LNG-TU-15-79
