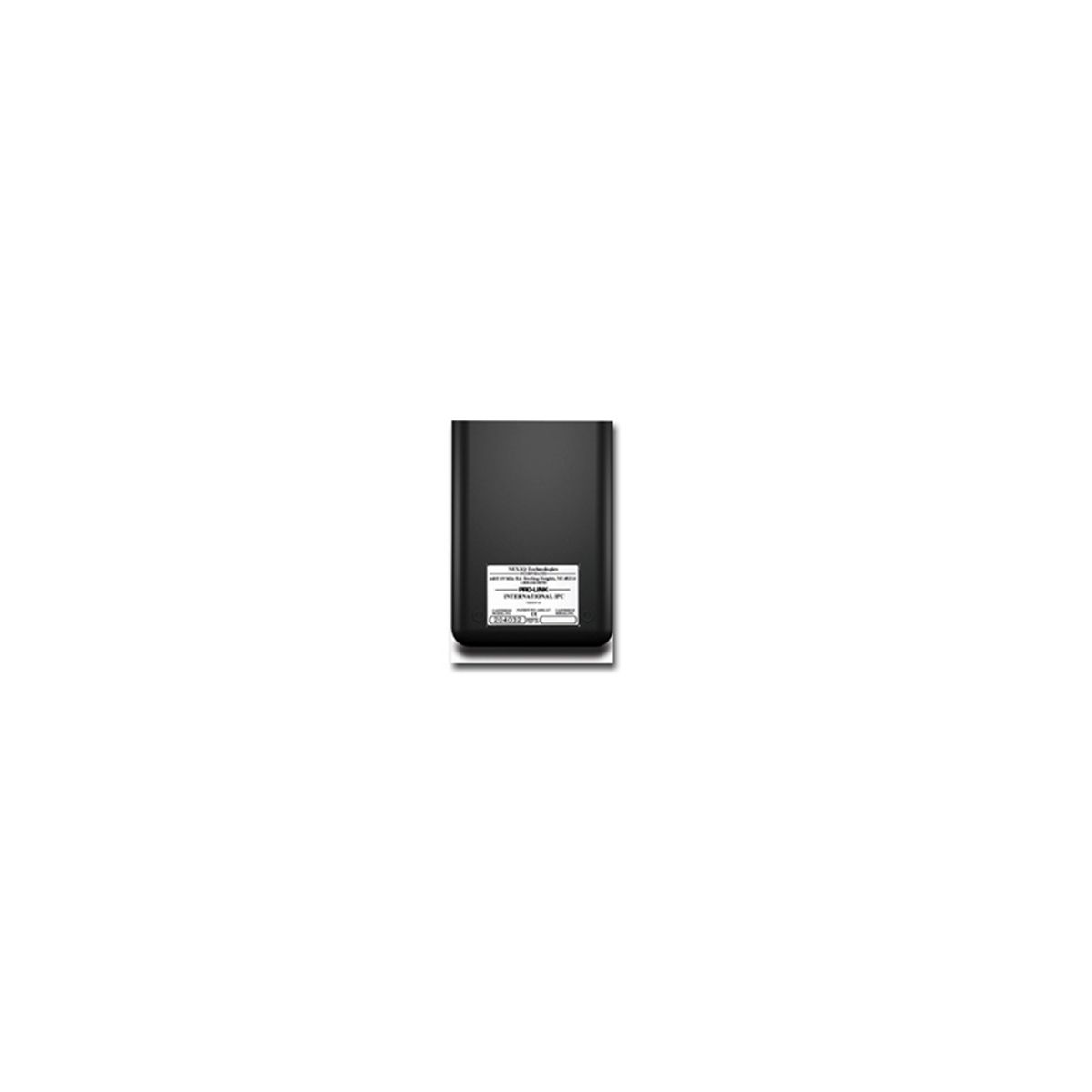

International MRD Electronic Engines Cartridge for Pro-Link Plus

International DT444 and DT466 featuring a separate Injector Drive Unit (IDU) and Vehicle Personality Module (VPM)

This cartridge is for use with the Pro-Link scan tool for diagnosing International Trucks with DT 444 or DT466 electronic engine systems with a separate IDU and VPM. Simple menus allow technicians to easily navigate through a variety of diagnostic functions. It provides access to a full range of comprehensive OEM proprietary data and tests for maintaining top vehicle performance and keeping it on the road.

Key Features:

• Access engine and trip data.
• Display data parameters and values in English or metric.
• Create custom data lists.
• Read and clear diagnostic fault codes.
• Perform ECU system self test diagnostics with engine off / engine running.
• Download and upload ECU calibrations with International via modem.
• Program vehicle/customer data and password protected parameters.
• Speed setting limits for road, cruise and PTO.
• Idle shutdown options.
• Engine protection shutdown options and many more.
• View vehicle data for trip hours, miles and fuel used.
• Isolate intermittent problems with Snapshot mode recording and playback.
• Printer output for printing data and test results.


ECU SYSTEM DIAGNOSTIC SELF TESTS
• Active codes.
• Standard test -actuates relays and tests continuity.
• Injector test - fire each injector in order.
• Output state test - set outputs to a high or low state.
• VSS test - tests vehicle speed sensor.
• Tach buffer test - tachometer self test.
• Wiggle Test - audible test for isolating intermittent connections.
• Includes: Cartridge and manual.

Data List Parameters:

Rated horsepower; Rated RPM; Active/inactive codes; Engine hours; Miles; Fuel usage; Battery volts; Engine oil temperature; Ambient air; Coolant level and temperature; Idle set RPM; Accelerator; Engine RPM; Boost PSI; Barometric PSI; Torque limit; Engine load; Injector control; Fuel gallons/ hour; Transmission shaft RPM; Two speed axle; Vehicle speed MPH; MPH limit; Cruise control information; Engine oil PSI; PTO information; Remote variable; Remote APS; Retarder inhibit; VPM information; ECM version and checksum

Reprogram the following parameters:

• Configuration options
• Start inhibit mode
• Retarder mode
• Exhaust back pressure
• Glow plug
• Cruise control
• Engine warning shutdown
• Event engine hours
• Fuel, hours, miles
• Idle shutdown
• Overtemp protection
• Passwords and audits
• PTO control
• Road speed limiting
• Torque tailoring
• Speed calibration
• VIN and engine serial number
• VPM revision data

For use with this item - sold separately: PN 108004 Pro-Linkr Plus; PN404024 6-pin Deutsch adapter; PN408028 9-pin Deutsch adapter; PN 401012 8-pin amp adapter.
