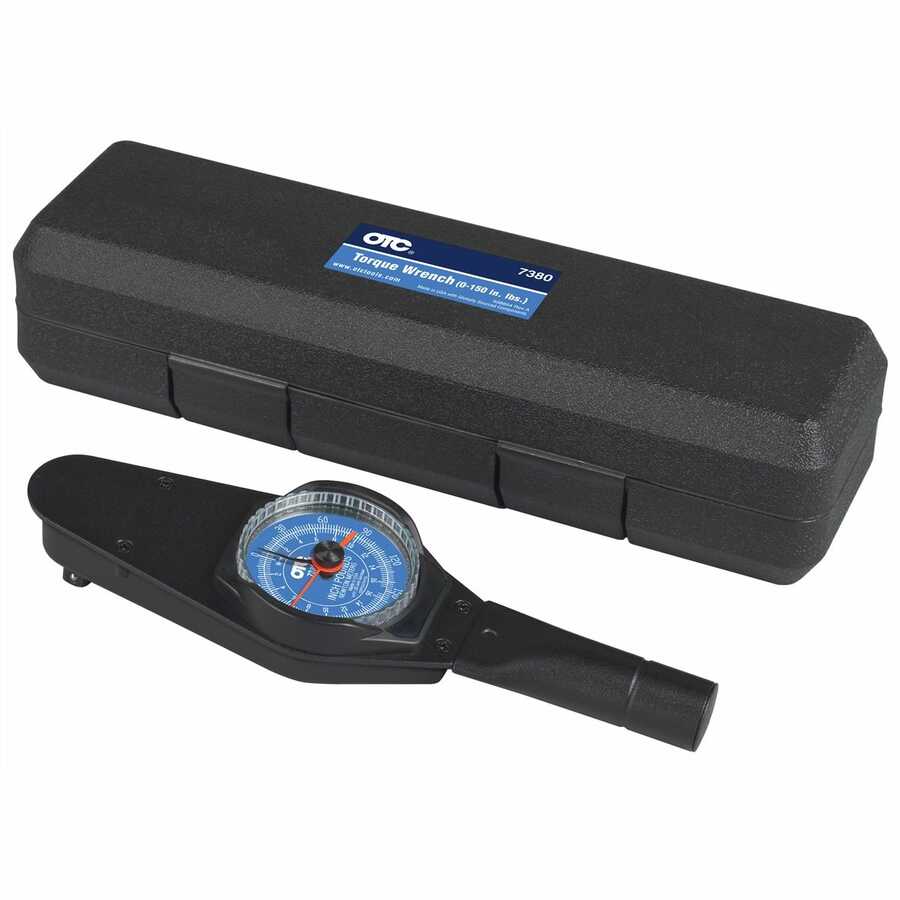

What is a dial torque wrench and when would I use one?

A dial torque wrench is a hand tool used to precisely apply a specific amount of torque to a fastener, indicated by a needle on a dial. Unlike click-type torque wrenches, dial wrenches provide a visual reading of the torque being applied in real-time. They're useful when you need to monitor torque throughout the tightening process or when working in low-torque applications where the 'click' of a click-type wrench might be too subtle. Some technicians prefer dial-type wrenches for their visual feedback and accuracy in delicate procedures.

What's the difference between inch-pound and foot-pound torque wrenches, and which do I need?

The difference lies in the units of torque they measure: inch-pounds (in-lbs) are used for lower torque values, while foot-pounds (ft-lbs) are for higher values. A 3/8" drive dial torque wrench is commonly used for inch-pound measurements. Choose the wrench based on the torque specifications of the fasteners you're working with. For example, you'd use an inch-pound wrench for delicate engine components or electronics, while a foot-pound wrench is better for lug nuts or suspension bolts. Always consult the manufacturer's specifications for the correct torque value and unit of measurement.

How do I read a dial torque wrench accurately?

Reading a dial torque wrench involves observing the needle on the dial as you apply force. Ensure the dial is calibrated to zero before use. As you tighten the fastener, the needle will move, indicating the torque being applied. Stop when the needle reaches the desired torque value on the dial. It's crucial to keep your eye perpendicular to the dial to avoid parallax error which can skew your reading. Some dial wrenches, like certain CDI models, feature dual scales for both English and metric units, so be sure you're reading the correct scale for your application.

How often should I calibrate my dial torque wrench?

Regular calibration is essential to maintain the accuracy of your dial torque wrench. For professional use, calibrate at least once a year or after every 5,000 uses, whichever comes first. If the wrench is dropped or subjected to extreme temperatures, it should be calibrated immediately. Proper storage in a case will also help maintain calibration. While some users attempt DIY calibration, professional calibration services offer the best assurance of accuracy.

Can I use a 3/8" drive dial torque wrench with adapters?

Yes, you can use adapters to increase or decrease the drive size of your 3/8" drive dial torque wrench. For example, you could use a 3/8" to 1/4" adapter to use smaller sockets. However, using adapters can slightly affect the accuracy of the torque reading due to added flex and mechanical losses. For critical applications, it's best to use a torque wrench with the correct drive size directly. If using an adapter is unavoidable, consider testing the setup on a non-critical joint first and recalibrating if necessary.

What are the advantages of a dial torque wrench compared to a click-type torque wrench?

Dial torque wrenches provide a visual indication of the torque being applied in real-time, allowing for more precise control, especially at lower torque values where the 'click' of a click-type wrench can be difficult to detect. They are also generally considered more accurate than click-type wrenches, especially after prolonged use. However, dial wrenches may be more fragile than click-type wrenches and require more careful handling. Some technicians prefer the immediate feedback of a dial, while others prefer the tactile confirmation of a click.

Are dial torque wrenches suitable for tightening left-hand threaded fasteners?

Yes, most dial torque wrenches can be used for tightening both right-hand (standard) and left-hand (reverse) threaded fasteners. However, it is important to verify that the dial is properly calibrated and that the wrench is designed to operate in both directions. Some dial torque wrenches have a specific mechanism for switching between clockwise and counter-clockwise operation, so consult the manufacturer's instructions before use. Always double-check the torque specification for left-hand threads, as they may differ from right-hand threads.

How do I properly store and maintain my 3/8" drive dial torque wrench to ensure its longevity?

Proper storage and maintenance are crucial for extending the life and accuracy of your dial torque wrench. Always store the wrench in its case to protect it from dust, moisture, and physical damage. Before storing, clean the wrench with a dry cloth and ensure the dial is set to zero. Avoid disassembling the wrench yourself, as this can affect its calibration. Periodically inspect the dial and needle for any signs of damage or wear. If you notice any issues, have the wrench professionally serviced.

Search

Manufacturers [more]

VIM Tools | VS610 | E10 TORX 3/8DR

Name: E10 TORX 3/8DR
Brand: VIM Tools
SKU: 229118
Price: 8.7 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Model Number: VS610
Drive Size: 3/8-inch square drive
TORX Profile: E10 External TORX
Manufacturer: VIM Tools
Weight: 0.05 lbs (approximately 23 grams)
Dimensions: 3.8 x 2.6 x 0.8 inches

Key Features

E10 External TORX Profile: Specifically designed for compatibility with E10 external TORX fasteners, common in modern automotive and machinery applications.
3/8-Inch Drive: Integrates with standard 3/8-inch drive ratchets, extension bars, and torque wrenches, offering versatility with existing tool collections.
Durable Construction: Manufactured by VIM Tools, ensuring a professional-grade tool built for reliability and longevity in demanding environments.
Compact Design: Engineered for efficient access to fasteners located in confined or hard-to-reach spaces.

Applications

Automotive Maintenance & Repair: Essential for servicing a wide range of vehicles, particularly European models, that extensively use E10 TORX fasteners.
Engine & Transmission Components: Used for precise work on engine parts, transmissions, and related sub-assemblies where specialty star bits are required.
Brake System Service: Ideal for removing or installing fasteners found on calipers, rotors, and other brake system components.
General Mechanical Tasks: Suitable for any mechanical application requiring a reliable E10 external TORX socket for secure fastener engagement.

Benefits

Prevents Fastener Damage: Provides a precise fit for E10 TORX fasteners, significantly reducing the risk of rounding or stripping specialty bolts during tightening or loosening.
Enhances Work Efficiency: The correct tool ensures quick and confident handling of specialized fasteners, streamlining repair and maintenance processes.
Built for Longevity: Constructed from robust materials, this VIM Tools socket withstands rigorous use, offering consistent performance and a lasting addition to your professional tool kit.
Seamless Tool Integration: Easily connects with any 3/8-inch drive system, avoiding the need for additional specialized drive tools and maximizing the utility of your existing equipment.

Other products
VIM Tools Homepage
Model: 229118
Shipping Weight: 0.05lbs
Manufacturers Part #: VS610
Manufactured by: VIM Tools
Also Known As: VIMVS610

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$8.70

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

This product was added to our catalog on Wednesday 13 April, 2016.
