What defines a 'conventional' spray gun, and when might I choose one?

Conventional spray guns, also known as air-atomizing guns, use a high volume of air to atomize the paint into a fine spray. While newer technologies like HVLP offer higher transfer efficiency, conventional guns can be preferred for achieving specific finishes, handling thicker materials, or for smaller jobs where speed and ease of setup are paramount. For example, an Astro Pneumatic siphon feed gun might be chosen for its simplicity and ability to spray a wide range of coatings without requiring specialized equipment.

What are the key differences between siphon feed and pressure feed conventional spray guns?

Siphon feed guns, like the Astro Pneumatic AS7SP, draw paint from a cup below the gun using a vacuum created by the airflow. They are generally simpler and more versatile for occasional use. Pressure feed guns, such as the DeVilbiss JGA series, use compressed air to force paint from a separate pressure pot or tank, allowing for higher material flow rates and more consistent spraying, especially with thicker coatings or larger projects. Consider your project size and material viscosity when choosing between these two feed types.

What nozzle size should I select for my conventional spray gun?

Nozzle size is crucial for achieving the desired finish and flow rate with your chosen material. Smaller nozzles (1.2-1.4mm) are often used for finer finishes like automotive clearcoats or touch-up work, as seen in the Astro Pneumatic touch-up gun. Larger nozzles (1.8mm or greater) are better suited for thicker materials like primers, sealers, or industrial coatings. Always refer to the paint manufacturer's recommendations for optimal nozzle size and adjust air pressure accordingly. It's best practice to start with the recommended size and adjust based on your results.

How important is air pressure regulation when using a conventional spray gun?

Precise air pressure regulation is critical for consistent atomization and finish quality with conventional spray guns. Too much pressure can cause excessive overspray and bounce-back, while too little pressure can result in an uneven, orange-peel texture. Use a high-quality regulator and gauge at the gun or air source to maintain the pressure recommended by the paint manufacturer. Experimentation on a test panel is always advised to dial in the optimal settings for your specific gun, material, and technique.

What kind of maintenance is required to keep a conventional spray gun working properly?

Regular cleaning is essential for maintaining a conventional spray gun's performance. Immediately after each use, thoroughly flush the gun with the appropriate solvent, disassembling and cleaning all components, including the nozzle, needle, and air cap. Dried paint can cause clogs and affect the spray pattern. Lubricate moving parts as needed with a gun-specific lubricant. Proper maintenance will extend the life of your spray gun and ensure consistent results. Some guns, like certain Astro Pneumatic models, are designed for easier disassembly and cleaning.

Can I use a conventional spray gun with water-based paints?

Yes, conventional spray guns can be used with water-based paints, but it's important to ensure the gun is compatible and properly cleaned. Water-based paints can corrode certain materials, so look for guns with stainless steel or other corrosion-resistant components in the fluid passages. Thorough cleaning is even more critical with water-based paints, as they tend to dry quickly and can clog the gun if not removed promptly. Always follow the paint manufacturer's recommendations for thinning and spraying water-based products.

What safety precautions should I take when using a conventional spray gun?

Spraying paint with a conventional gun creates airborne particles that can be harmful to your health. Always wear appropriate personal protective equipment (PPE), including a respirator or supplied-air respirator, eye protection, and gloves. Work in a well-ventilated area or use a spray booth to minimize exposure to fumes and overspray. Avoid spraying near open flames or sources of ignition, as many paints and solvents are flammable. Refer to the paint's Material Safety Data Sheet (MSDS) for specific safety recommendations.

How do I adjust the spray pattern on a conventional spray gun?

Conventional spray guns typically have adjustable controls for fan width, fluid flow, and air pressure, allowing you to customize the spray pattern. The fan width control adjusts the horizontal size of the spray pattern. The fluid flow control regulates the amount of paint being dispensed. Adjusting these controls, along with air pressure, lets you adapt the gun to different surfaces, coating types, and application techniques. Practice on a test panel to find the optimal settings for your specific needs. Some guns, like the Astro Pneumatic AS6S, are designed for fine adjustments.

Search

Manufacturers [more]

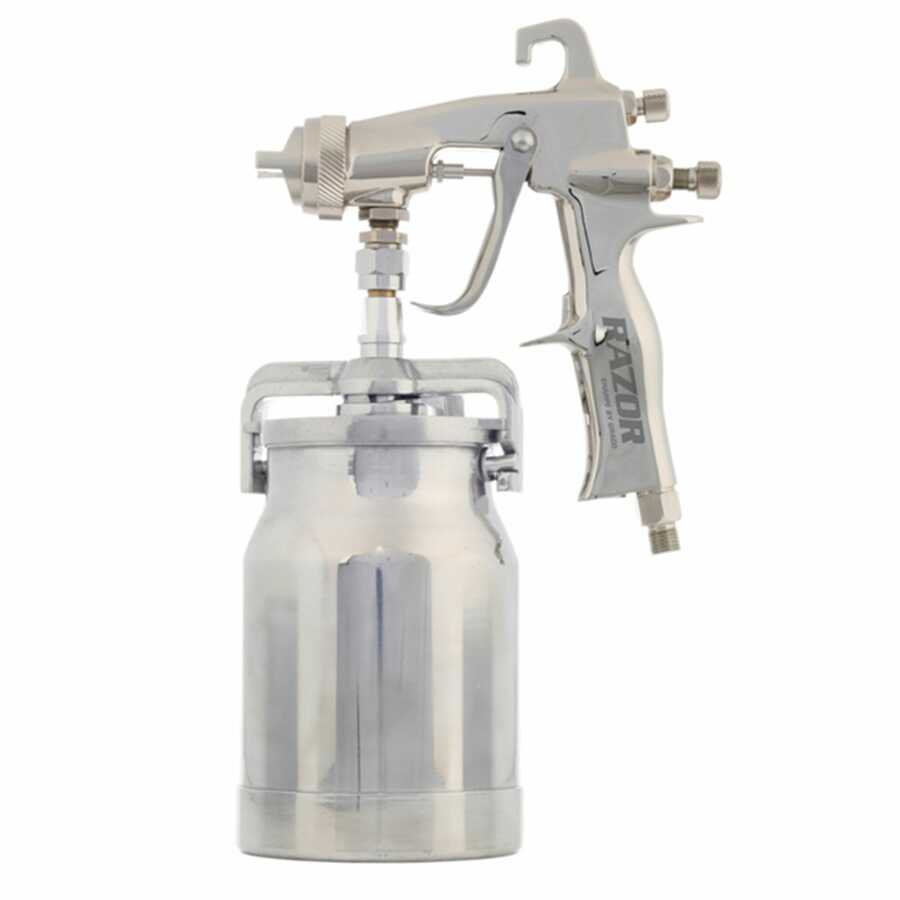

Sharpe Manufacturing Co | 288291 | Sharpe 288291 Conventional Siphon Feed Razor Spray Gun - 1.5mm

Name: Sharpe 288291 Conventional Siphon Feed Razor Spray Gun - 1.5mm
Brand: Sharpe Manufacturing Co
SKU: 101825
Price: 610.76 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Sharpe Manufacturing Co
Model Number: 288291
Product Type: Conventional Siphon Feed Spray Gun
Nozzle Size: 1.5mm, suitable for a range of coatings and finishes.
Weight: 3.5 lbs, providing a balanced and manageable feel during operation.

Key Features

Siphon Feed System: This design draws material from a cup positioned below the gun, ideal for heavier coatings and applications where gravity assists material flow.
Precision 1.5mm Nozzle: The 1.5mm fluid tip ensures consistent material atomization, delivering an even and high-quality finish across various surfaces.
Durable Construction: Built to withstand demanding professional environments, ensuring longevity and reliable performance.

Applications

Automotive Refinishing: Applies primers, base coats, and clear coats with precision for vehicle repair and restoration.
Industrial Coating: Suitable for applying various protective and decorative coatings on machinery, equipment, and structural components.
Woodworking Finishes: Achieves smooth, uniform finishes on furniture, cabinets, and other wooden items.
General Purpose Painting: Versatile enough for a wide array of painting tasks requiring controlled application and consistent coverage.

Benefits

Consistent Finish Quality: The 1.5mm nozzle and conventional siphon feed system work together to produce finely atomized material, resulting in smooth, uniform coatings.
Enhanced Versatility: Effectively handles a variety of paint types, including medium to high viscosity materials, allowing for broad application across different projects.
Reliable Performance: Engineered for durability, this spray gun maintains consistent operation and output, minimizing downtime and rework.
User-Friendly Operation: The straightforward siphon feed design simplifies setup, operation, and maintenance, making it accessible for professional and experienced users alike.

Other products
Sharpe Manufacturing Co Homepage
Model: 101825
Shipping Weight: 3.5lbs
Manufacturers Part #: 288291
Manufactured by: Sharpe Manufacturing Co
Also Known As: SHA288291

Usually In Stock
Usually ships in 24-48 hours
Manufacturer Direct

$610.76

Add to Cart:

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

This product was added to our catalog on Wednesday 17 October, 2007.
