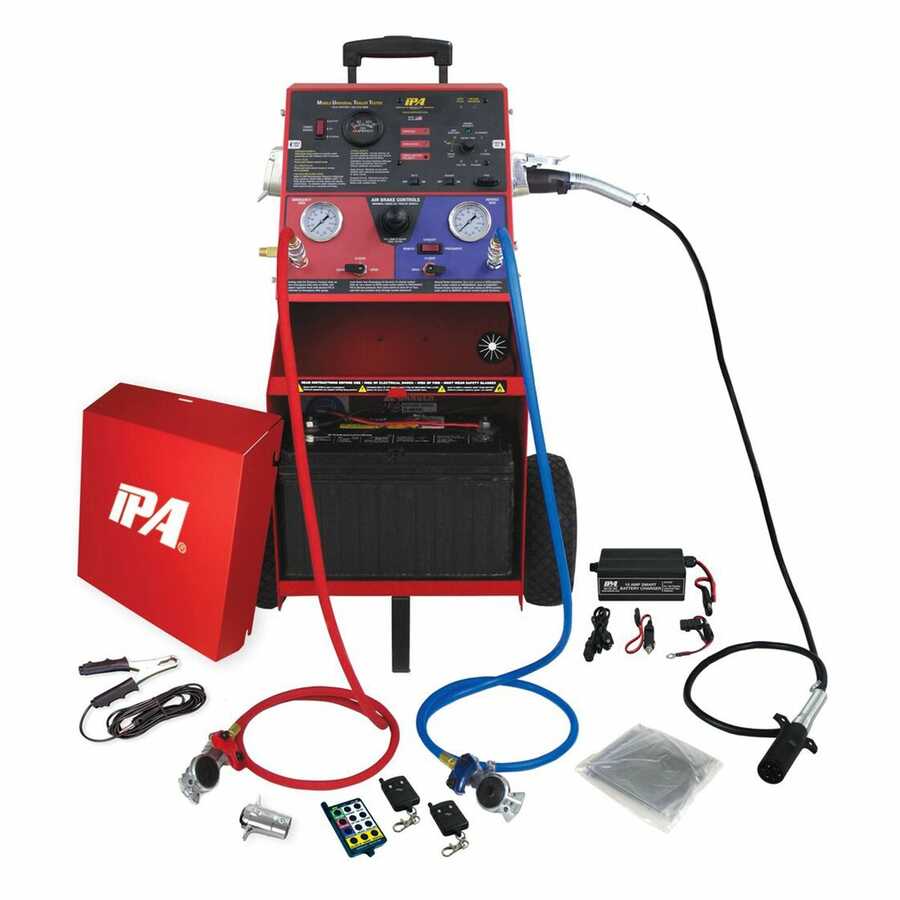

SuperMUTT Trailer Tester Deluxe Edition

SuperMUTT Trailer Tester Deluxe Edition
The Super MUTT(R) Trailer Tester is a Mobile Diagnostic Trailer Tester that places a load on the trailer's electrical circuits to identify wiring problems while providing remote control operation over both air brakes and lights. Built to facilitate a one-man testing operation, the Super MUTT(R) reduces guesswork and inspection time to prevent failures that lead to expensive road calls and citations. The remote control allows for repetitive air brake actuation at each axle to reveal developing problems often missed by normal testing procedures.

The most advanced Super MUTT(R) to date includes such features as a mute bypass switch and internal regulator.

AIR BRAKE TESTING
  • Performs leak down test on service and emergency lines
  • Observe slacker adjustment in real time
  • Activates air brakes by remote control
ELECTRICAL TESTING
  • Pulsar(R) mode, cross, open, overloaded and shorted circuit indication
  • Amperage readout; audible and visible alerts
  • 7 way cable testing
  • Access ABS blink codes
  • Activates lights by remote control
REMOTE CONTROL
  • One-man testing
Specifications:
  • Power Input: Group 31 (or similar battery) or external 12 volt power source
  • Output: 20 amps @ 12 volts DC
  • Connection Type: 7-Way Round Pin
  • Controls: Manual, Remote, Automatic
  • Materials: Steel construction
  • Weight: 40 lbs
  • Package Weight: 51 lbs.
  • Dimensions: W: 14" x H: 28" x 10" D
Includes:
  • 3 (#7900K-34) Remote Control
  • (#7900K-2BCHAS) Chassis Ground Cable
  • (#7900AP-18AS) 6' Red Glad Hand and (#7900AP-23AS) 6' Blue Glad Hand
  • (#9005-2R) Face Shield
  • (#CHGR-3AMP) 3 Amp Battery Charger
  • (#CVR-001) Rain Cover
  • (#7900K-93) External Battery Connector

Innovative Products Of America IPA 9008-DL SuperMUTT Deluxe Trailer Tester with Deluxe Equipment
  • Shipping Weight: 51.55lbs
  • Manufactured by: Innovative Products of America
  • Toolsource #: 149508
  • Manufacturers Part #: 9008-DL
  • Also Known As: IP9008-DL, IPA-9008-DL, IPA9008-DL

We have 26 in stock

Inventory available from other suppliers, prices may be different

$1,984.33
