What is a circuit tester and what are the different types available?

A circuit tester is a tool used to verify the presence of voltage in an electrical circuit. Basic testers, like the Lisle Low Voltage Circuit Tester, light up when voltage is detected, indicating continuity. More advanced testers, such as the Power Probe III, can supply power, measure voltage, and even detect shorts. Some testers also come with back probe adapters for accessing hard-to-reach connectors.

How do I use a circuit tester safely and effectively?

Always consult the manufacturer's instructions before using a circuit tester. Start by verifying the tester is functioning correctly on a known live circuit. When testing, ensure you have a good ground connection. Be careful not to pierce or damage wires with the probe. For more complex testers like the Power Probe, understand the voltage limits and follow the recommended testing procedures to avoid damaging the tool or the vehicle's electrical system.

What is a current indicator and how does it differ from a standard circuit tester?

A current indicator, like the GearWrench Current Indicator, measures the amount of current flowing through a wire without needing to break the circuit. Unlike a standard circuit tester that simply detects the presence of voltage, a current indicator provides a quantitative measurement of amperage. This is particularly useful for diagnosing issues with components like alternators and starters, as it can indicate the direction and magnitude of current flow.

What does it mean for a circuit tester to have 'short circuit protection' and why is it important?

Short circuit protection means the tester is designed to prevent damage to itself and the vehicle's electrical system if the probe accidentally contacts a ground while supplying power. This feature is crucial because accidentally creating a short circuit can damage sensitive electronic components or blow fuses. Testers like the Power Probe series often include overload protection to prevent damage from excessive current draw.

When should I use a back probe adapter with my circuit tester?

Back probe adapters, such as the Power Probe Back Probe Adapter, are used to access electrical connections on the backside of connectors without damaging the wire insulation or connector itself. This is particularly useful when diagnosing issues in tight spaces or when you need to measure voltage or continuity at a specific point in a wiring harness. They allow you to test circuits without disconnecting or disrupting the original connection.

Can circuit testers be used on both 12V and 24V systems?

The voltage range a circuit tester can handle depends on its design. Many circuit testers are designed for use on 6V, 12V, and 24V systems, making them suitable for a wide range of vehicles and equipment. However, always check the manufacturer's specifications to ensure that the tester is rated for the voltage of the circuit you are testing. Using a tester outside of its rated voltage range can damage the tool or create a safety hazard.

What are the benefits of using a circuit tester with a built-in headlight or LED?

A circuit tester with a built-in headlight or LED, like the Power Probe II, provides illumination in dark or hard-to-reach areas. This feature is particularly useful when working under the dashboard, inside engine compartments, or in other dimly lit areas where it can be difficult to see the wiring and connectors clearly. The added visibility can improve accuracy and reduce the risk of accidentally damaging wires or components.

How do I choose the right circuit tester for automotive diagnostics?

The best circuit tester for automotive diagnostics depends on the complexity of the tasks you perform. For basic continuity testing and voltage detection, a simple tester like the Lisle Low Voltage Circuit Tester may suffice. For more advanced diagnostics, such as powering components, measuring voltage drops, and diagnosing short circuits, a more advanced tester like the Power Probe III, with its expanded capabilities, would be a better choice. Also, consider whether you need features like short circuit protection and back probe adapters.

Search

Manufacturers [more]

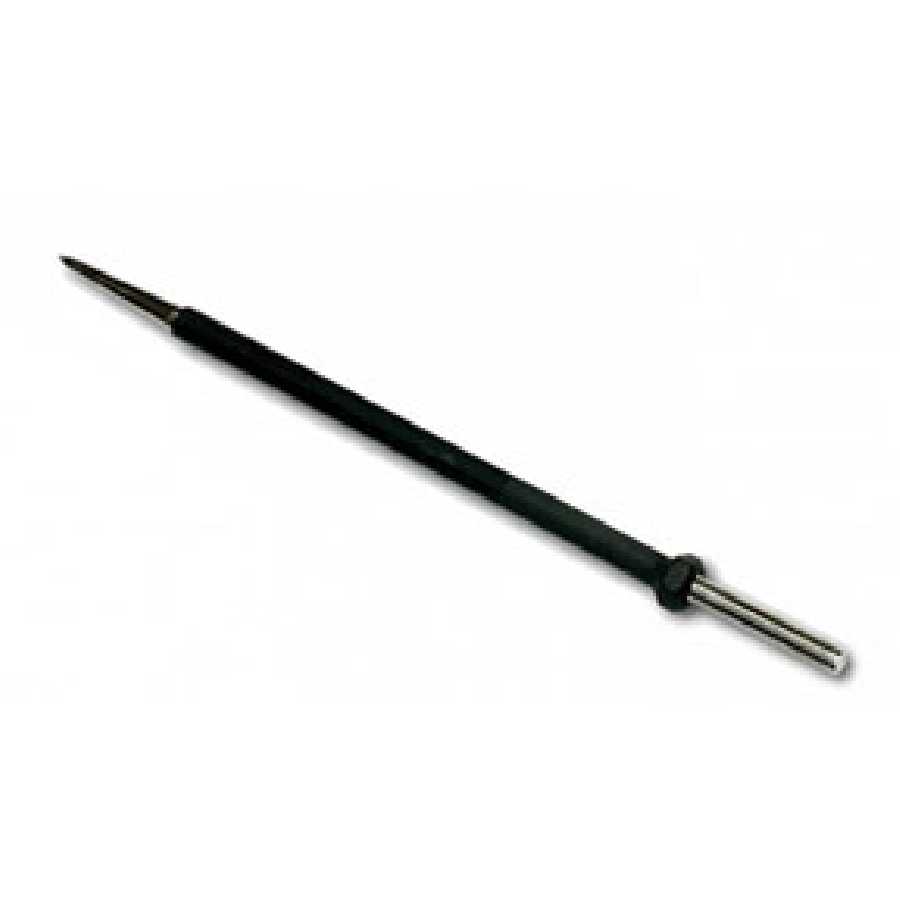

Power Probe | PN006 | Replacement Standard 3In Tip for Power Probe I & II

Name: Replacement Standard 3In Tip for Power Probe I & II
Brand: Power Probe
SKU: 104084
Price: 7.23 USD
Availability: Discontinued
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Power Probe
Model Number: PN006
Weight: 0.04 lbs
Dimensions: 6.25 x 4.5 x 0.1 inches

Key Features

Standard 3-inch Tip: Provides a versatile length for various diagnostic tasks.
Direct Compatibility: Specifically designed for seamless integration with Power Probe I and Power Probe II diagnostic tools.
Durable Construction: Built to withstand regular use in demanding automotive and electrical environments.
Easy Replacement: Allows for quick and straightforward installation, minimizing downtime.

Applications

Automotive Electrical Diagnostics: Ideal for testing circuits, checking grounds, and identifying voltage issues in vehicles.
Circuit Tracing: Facilitates precise contact and accurate readings when following electrical pathways.
Component Testing: Used to safely probe and verify the functionality of various electrical components.
Professional and DIY Use: Suitable for mechanics, technicians, and enthusiasts performing electrical system checks.

Benefits

Restores Accuracy: Replaces worn or damaged tips, ensuring precise electrical measurements and reliable diagnostic results.
Extends Tool Lifespan: Provides a cost-effective solution to maintain the functionality of existing Power Probe I and II tools.
Ensures Reliable Connections: The standard tip design allows for consistent and secure contact during testing.
Maintains Performance: Helps users sustain the high performance and efficiency expected from their Power Probe diagnostic equipment.

Other products
Power Probe Homepage
Model: 104084
Shipping Weight: 0.04lbs
Manufacturers Part #: PN006
Manufactured by: Power Probe
Also Known As: PPRPN006, PWP-PN006, PPPN006, PPIPN006

This product has been discontinued

Earn 1% Back On Every Purchase (Rewards Program)

We are Here To Help (Contact Us)

6 people have this item in their cart!

This product was added to our catalog on Thursday 04 September, 2008.
