What is a circuit tester and what are the different types available?

A circuit tester is a tool used to verify the presence of voltage in an electrical circuit. Basic testers, like the Lisle Low Voltage Circuit Tester, light up when voltage is detected, indicating continuity. More advanced testers, such as the Power Probe III, can supply power, measure voltage, and even detect shorts. Some testers also come with back probe adapters for accessing hard-to-reach connectors.

How do I use a circuit tester safely and effectively?

Always consult the manufacturer's instructions before using a circuit tester. Start by verifying the tester is functioning correctly on a known live circuit. When testing, ensure you have a good ground connection. Be careful not to pierce or damage wires with the probe. For more complex testers like the Power Probe, understand the voltage limits and follow the recommended testing procedures to avoid damaging the tool or the vehicle's electrical system.

What is a current indicator and how does it differ from a standard circuit tester?

A current indicator, like the GearWrench Current Indicator, measures the amount of current flowing through a wire without needing to break the circuit. Unlike a standard circuit tester that simply detects the presence of voltage, a current indicator provides a quantitative measurement of amperage. This is particularly useful for diagnosing issues with components like alternators and starters, as it can indicate the direction and magnitude of current flow.

What does it mean for a circuit tester to have 'short circuit protection' and why is it important?

Short circuit protection means the tester is designed to prevent damage to itself and the vehicle's electrical system if the probe accidentally contacts a ground while supplying power. This feature is crucial because accidentally creating a short circuit can damage sensitive electronic components or blow fuses. Testers like the Power Probe series often include overload protection to prevent damage from excessive current draw.

When should I use a back probe adapter with my circuit tester?

Back probe adapters, such as the Power Probe Back Probe Adapter, are used to access electrical connections on the backside of connectors without damaging the wire insulation or connector itself. This is particularly useful when diagnosing issues in tight spaces or when you need to measure voltage or continuity at a specific point in a wiring harness. They allow you to test circuits without disconnecting or disrupting the original connection.

Can circuit testers be used on both 12V and 24V systems?

The voltage range a circuit tester can handle depends on its design. Many circuit testers are designed for use on 6V, 12V, and 24V systems, making them suitable for a wide range of vehicles and equipment. However, always check the manufacturer's specifications to ensure that the tester is rated for the voltage of the circuit you are testing. Using a tester outside of its rated voltage range can damage the tool or create a safety hazard.

What are the benefits of using a circuit tester with a built-in headlight or LED?

A circuit tester with a built-in headlight or LED, like the Power Probe II, provides illumination in dark or hard-to-reach areas. This feature is particularly useful when working under the dashboard, inside engine compartments, or in other dimly lit areas where it can be difficult to see the wiring and connectors clearly. The added visibility can improve accuracy and reduce the risk of accidentally damaging wires or components.

How do I choose the right circuit tester for automotive diagnostics?

The best circuit tester for automotive diagnostics depends on the complexity of the tasks you perform. For basic continuity testing and voltage detection, a simple tester like the Lisle Low Voltage Circuit Tester may suffice. For more advanced diagnostics, such as powering components, measuring voltage drops, and diagnosing short circuits, a more advanced tester like the Power Probe III, with its expanded capabilities, would be a better choice. Also, consider whether you need features like short circuit protection and back probe adapters.

Search

Manufacturers [more]

Sheffield Research | 8002 | Cordless Circuit Tester w Buzzer

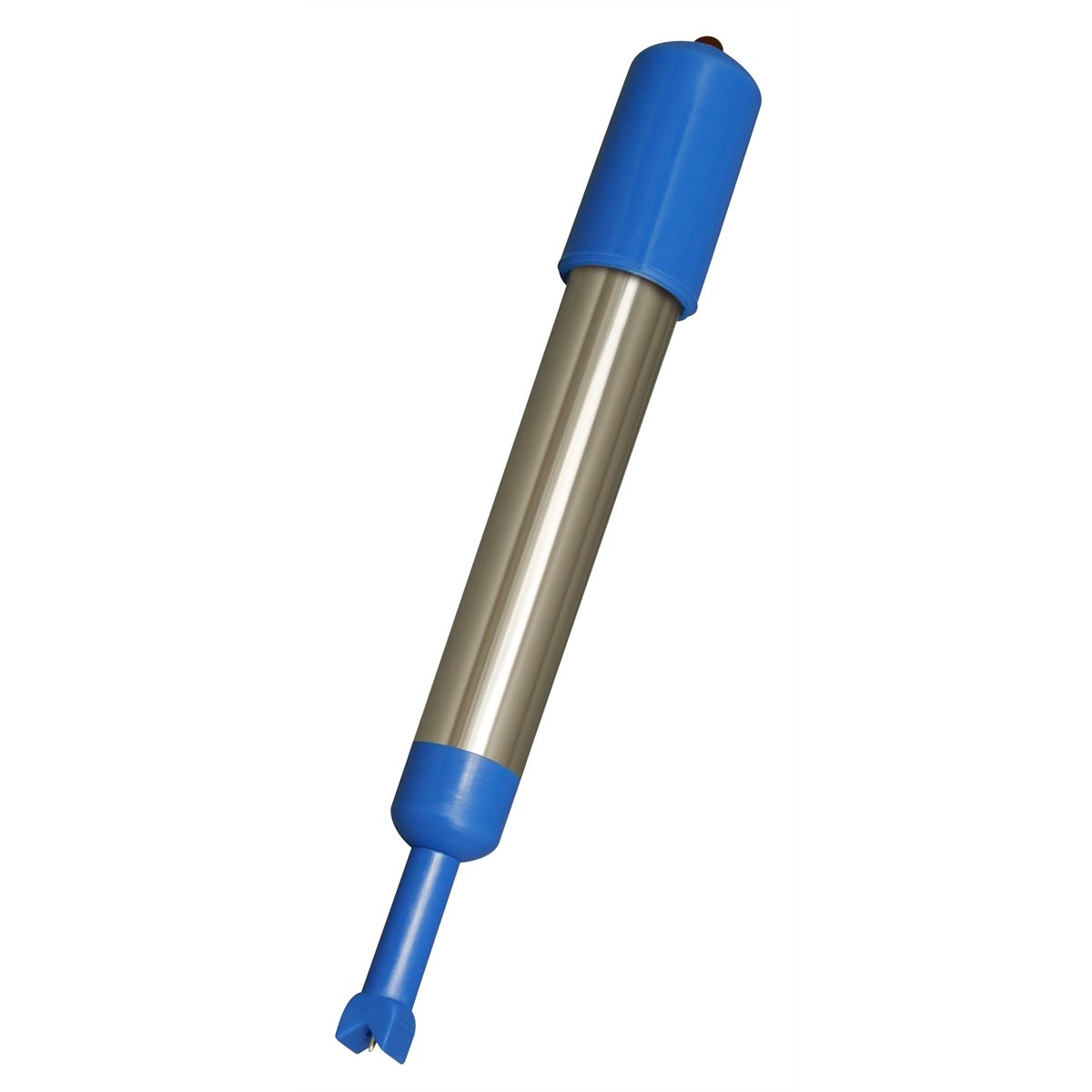

Name: Cordless Circuit Tester w Buzzer
Brand: Sheffield Research
SKU: 58056
Price: 32.78 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Model Number: {manufacturers_part_number}
Weight: 0.15 lbs
Dimensions: 7.5 x 3.5 x 1 inches

Key Features

Cordless Operation: Enables freedom of movement and eliminates the need for direct wire connections when testing electrical circuits.
Integrated Buzzer: Provides an immediate audible alert to indicate the presence of voltage, enhancing user awareness and safety.
Compact Design: The lightweight and portable form factor ensures easy handling and convenient storage, ideal for on-the-go professionals.
Durable Construction: Built by Sheffield Research, this circuit tester offers reliability for consistent performance in various environments.

Applications

Automotive Diagnostics: Efficiently test electrical circuits in vehicles, including fuses, wiring, and components, to identify faults quickly.
Household Electrical Troubleshooting: Safely check outlets, switches, and lighting fixtures for power presence without direct contact.
Circuit Verification: Ideal for electricians and DIY enthusiasts to confirm live wires or troubleshoot open circuits in a variety of settings.
Non-Contact Voltage Detection: Allows for preliminary checks of electrical systems before more intrusive testing, minimizing risk.

Benefits

Enhanced Safety: The cordless design and non-contact voltage detection reduce the risk of electrical shock, protecting the user during testing.
Increased Efficiency: Rapidly identify live circuits or breaks with clear audible feedback, streamlining troubleshooting processes and saving time.
User Convenience: Its portable and lightweight nature makes it easy to carry and use in confined spaces or awkward angles without restrictive wires.
Reliable Diagnostics: Delivers consistent and clear indications of circuit status, helping users accurately pinpoint electrical issues.
