Trammel Type Toe Gauge

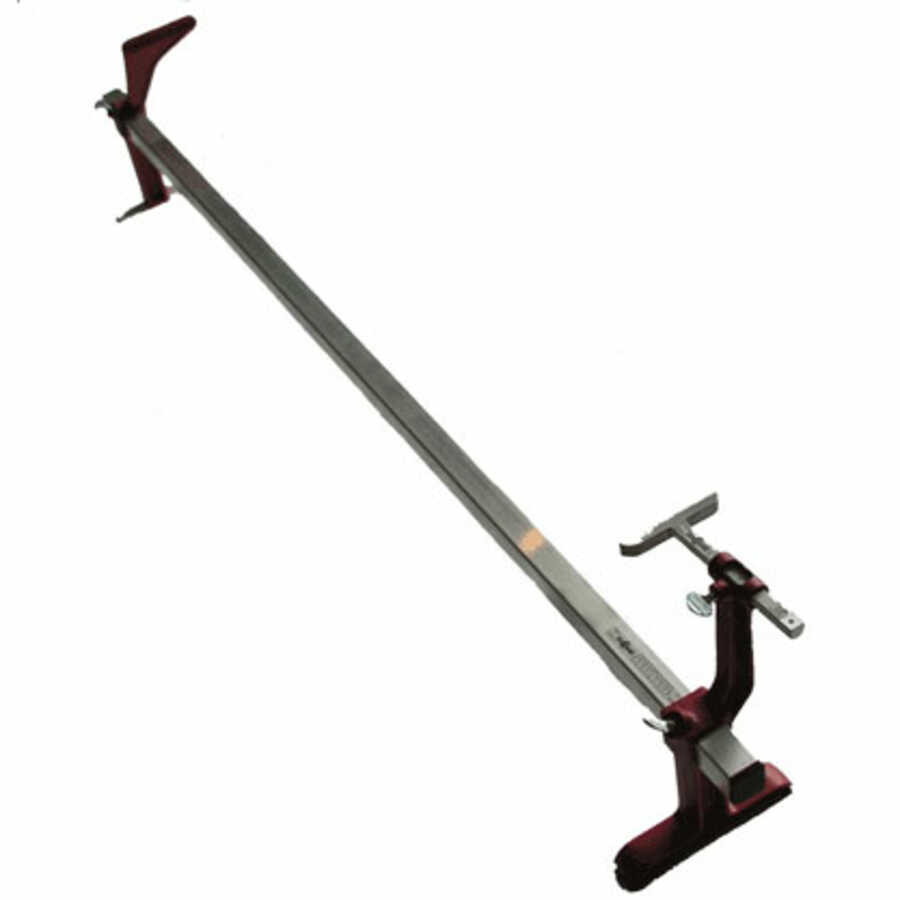

Trammel Type Toe Gauge
The WA0510 Trammel Type Toe Gauge is designed for quick, accurate toe readings. This unit is so simple that even the novice can use it accurately.
  • The legs are offset so that the bar may be used with the vehicle either on turntables or on the floor.
  • Built for durability this gauge reads from the outside of one wheel to the outside of the other.
  • Made of heavy aluminum castings and bright zinc 18 gauge welded steel tubing, 8 feet in length, with an indicator dial graduated in thirty-seconds of an inch, and in millimeters.
  • Measurements are taken at the truest surface of the tire, the scuff rib.
  • Readings are not affected by bent wheels or irregular tire treads.
  • The vehicle stays in position while it is checked and corrections aer made.
  • Starting at zero on the gauge dial at the front of the vehicle, then moving the gauge to the back of the front wheels and setting the dial again, and taking a reading, makes this alignment procedure so easy that anyone can do it.
  • Measuring wheels as shown above the outside width is 88". By reversing legs and measuring the inside of the tires the capacity is increased to 101"
  • NOTE: Beam is shipped separate from the gauge.
Manufacturer drop-ship.

Wheel-A-Matic WA0510 Trammel Type Toe Gauge
  • Shipping Weight: 10lbs
  • Manufactured by: Wheel-A-Matic
  • Toolsource #: 121068
  • Manufacturers Part #: WA0510
  • Also Known As: WAM-WA0510, WMWA0510

Only 4 left in stock - order soon

$184.34
