Large Arbor Set 1-7/8 In Diameter - Kwik-Way

Part #: 102-1069-00

The set is designed for drum and rotor application for 3/4 -Ton and Heavy Duty Trucks.

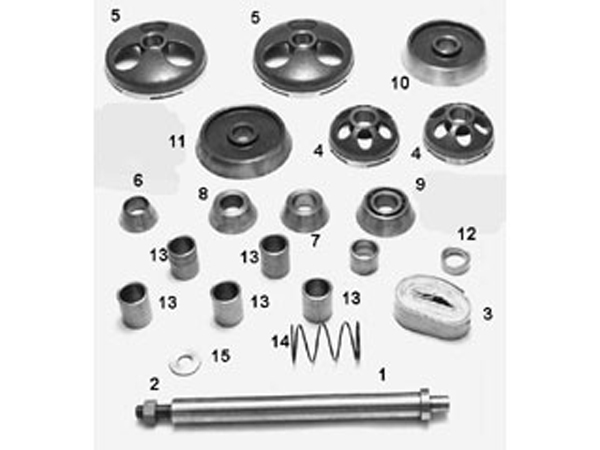

Includes:
  1. 102-1060-00 - Large Arbor: 1-7/8" (48mm) diameter
  2. 102-1064-00 - Arbor Nut
  3. 101-0230-52 - Silencer Strap
  4. 101-0635-00 - Bell Clamps (2): 6-3/8" (162mm) OD
  5. 101-0636-07 - Bell Clamps (2): 9-3/4" (248mm) OD
  6. 101-0641-07 - Cone 1-L: 2-3/16 - 3-3/8" (56-86mm)
  7. 101-0642-04 - Cone 2-L: 3-1/16 - 4-7/32" (78-107mm)
  8. 101-0643-01 - Cone 3-L: 4-3/16 - 5-3/8" (106-137mm)
  9. 101-0644-09 - Cone 4-L: 5-5/16 - 6-1/2" (135-165mm)
  10. 101-0645-06 - Cone 5-L: 6-7/16 - 7-5/8" (175-194mm)
  11. 101-0646-03 - Cone 6-L: 7-9/16 - 8-3/4" (192-222mm)
  12. 101-0631-00 - Spacer - 1" (25mm)
  13. 101-0632-08 - Spacer (5) - 2" (76mm)v101-0638-01 - Heavy Duty Spring
  14. 102-1061-00 - Washer
Kwik-Way 102-1069-00 Large Arbor Set 1-7/8" Diameter

Recommended Alternatives

This product was added to our catalog on Wednesday 14 February, 2007.
