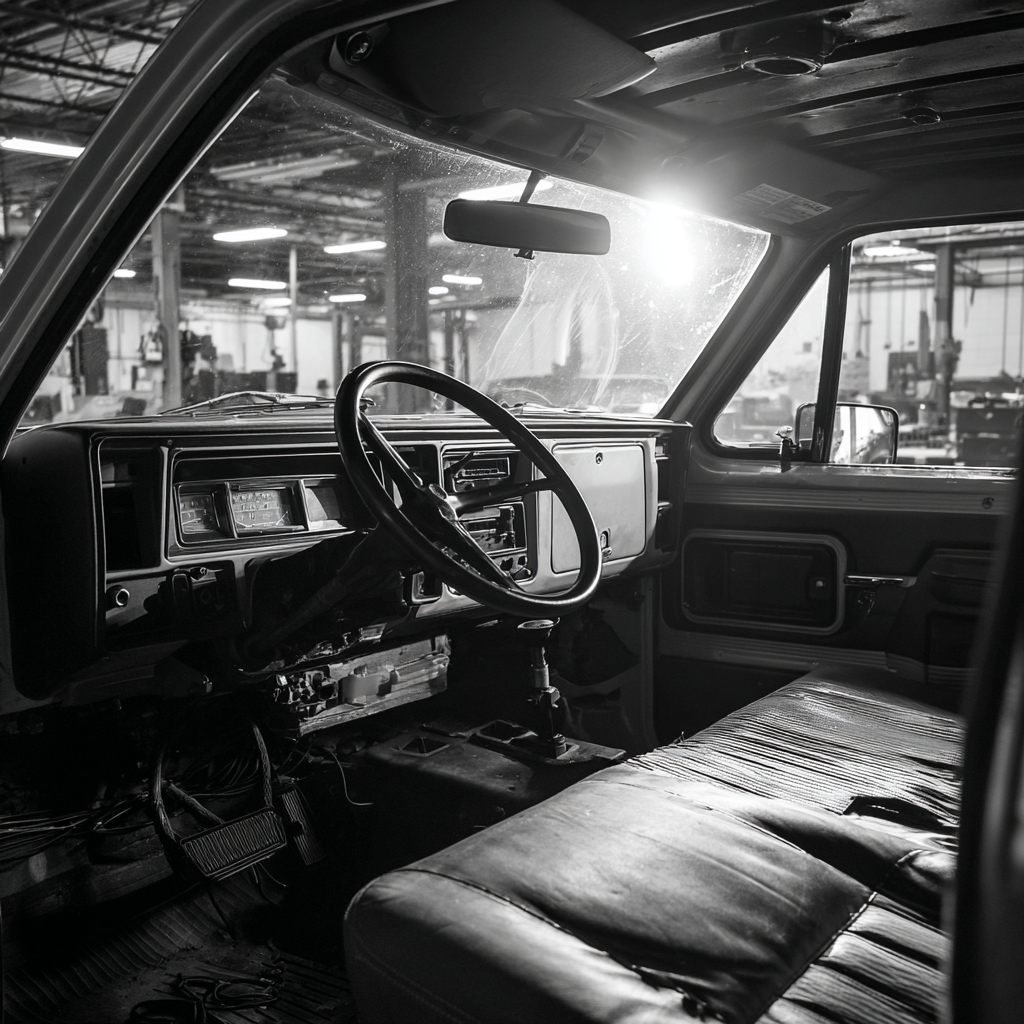

Walk into a vehicle with the dashboard stripped into a hundred pieces, and it feels unfixable. It isn’t. With a systematic approach, you can put it back together reliably and safely. This guide uses the 1997–2003 Ford F-150 heater core job as the reference case, but the workflow applies to many trucks and SUVs where the instrument panel (IP) and HVAC plenum were disassembled piece-by-piece instead of being removed as assemblies.

1) Safety, Setup, and Service Information

  • Battery and SRS: Disconnect the negative battery cable and wait at least 3 minutes before touching any airbag connectors or modules. Do not probe SRS circuits. Keep airbags face-up on a stable surface.
  • Steering column care: If the column is hanging, support it to avoid collapsing or damaging the intermediate shaft. Do not let it hang by the wiring.
  • Service info: Pull OEM procedures and diagrams (Ford service info, ALLDATA, Mitchell). Get IP removal/installation, HVAC plenum removal, and wiring connector views. Print the instrument panel exploded view and the HVAC case diagram.
  • Work area: Clear both front seats, center floor, and footwells. Lay down clean mats to protect trim and carpet from coolant and tool damage.
  • Documentation: Before touching anything, photograph the current state—wiring routes, grounds, brackets, dangling connectors, and the firewall. Keep photos as you go.
  • Organization: Use magnetic bowls and labeled zip bags for fasteners. Stage parts in the order you’ll install them. Have painter’s tape and a marker for quick labeling.

2) Fastener and Parts Triage

When a dash was torn down the hard way, fasteners are often mixed. Spend 20–30 minutes sorting; it saves hours later.

  • Common Ford fasteners: Expect many 7 mm hex head screws for bezels and small brackets, M6 x 1.0 bolts for dash-to-body points, and a handful of Torx for column shrouds and SRS modules.
  • Sort by type: Separate sheet-metal screws (coarse thread) from machine screws/bolts (metric). Group by length. Keep trim screws with integrated washers together.
  • Clips and retainers: Inventory panel clips, HVAC case screws, push pins, and wire harness retainers. Replace broken Christmas-tree clips and case screws as needed.
  • Brackets and grounds: Identify center support brackets, A-pillar/dash end brackets, radio/HVAC stack brackets, and all ground lugs (often green or bare ring terminals). Mark ground locations with tape.
  • Missing hardware strategy: Replace missing machine screws with the correct metric size and length when possible. Flange bolts with captive washers are preferred over loose flat washers in hidden structural locations. Avoid random self-tappers into plastic except for non-structural trim where originals were also self-tappers.
  • Consumables to have: Assorted Ford panel clips, HVAC foam tape or seals, butyl rope for duct joints, harness tape (cloth), split loom, dielectric grease for connectors, and small cable ties.

3) Bench-Rebuild the HVAC Plenum and Core

The heater core must be secured, sealed, and leak-free before the dash goes back in. Rebuild as much as you can off the vehicle.

  • Case integrity: Inspect HVAC case halves for stripped bosses and cracked flanges. Repair minor cracks with plastic epoxy or replace the case if severe. Ensure all case screws are present so the halves clamp evenly.
  • Heater core install: Seat the core fully in its cradle. Replace foam seals around the tubes to prevent air bypass and squeaks. Confirm the tubes align cleanly through the firewall grommet without binding.
  • Blend door actuators: Verify all actuators are present, keyed correctly, and have their output shafts engaged with the doors. Replace broken couplers. Label each actuator connector (blend, mode, recirc).
  • Evaporator considerations: Many trucks combine the heater core and evaporator in the same plenum. If A/C lines were disconnected, replace the accumulator/drier and use new O-rings lubricated with the correct oil. If the case was split in-vehicle, ensure the evaporator is properly re-sealed to prevent condensate leaks and air bypass.
  • Resistor or blower control module: Ensure the blower resistor/module is mounted and connected; missing screws can rattle and cause poor thermal contact.
  • Pressure/Leak check: Before final assembly, pressure test the cooling system cold at ~15 psi using a hand pump. If the case is in the cab, cap the heater core tubes and/or temporarily plumb short hoses to test for leaks. Fix any seepage now.
  • Firewall grommets: Confirm the heater core grommet seats properly in the firewall opening. Replace torn grommets to avoid water ingress and fumes.

4) Rehang the Dash and Align Major Structures

The simplest path is to build the dash back as an assembly and loosely hang it before connecting everything tight.

  • Steering column: If removed, install the column later. If it’s still in, lower it onto a padded support. Avoid separating the intermediate shaft unless specified in the service info.
  • HVAC plenum to firewall: Guide the plenum tubes through the firewall grommet and onto their studs. Start all plenum nuts finger-tight only. Connect heater hoses loosely for position reference (tighten later).
  • Instrument panel (IP) placement: Lift the IP assembly into the cabin, aligning the A-pillar/dash-end brackets with their mounting points. Start the end bolts finger-tight. Engage the top cowl screws along the windshield base and the center support bracket at the tunnel area, all still finger-tight. The goal is to hang the dash solidly yet adjustable.
  • Harness routing: Lay the main IP harness in the factory troughs and clips. Route across left-to-right following your printed diagram/photos. Keep harnesses behind the structural beam and away from sharp edges or moving linkages.
  • Grounds first: Reattach all IP grounds, body grounds near the A-pillars, and any center stack grounds. Loose grounds cause phantom electrical faults that waste hours.
  • Column install or reattach: If removed, install the steering column now. Torque fasteners per service info and ensure the column is centered. Reconnect ignition switch and shifter interlock cables as applicable.

5) Electrical Connections, Subsystems, and Pre-Final Testing

Connect in a logical sequence and prove functions before you torque the dash home.

  • Connector strategy: Start on the driver’s side and work across. Common groups include cluster, headlamp switch, steering wheel/clock spring, column connectors, radio/HVAC control head, 4WD switch, passenger airbag, glovebox light, and power outlet harnesses. Lock the secondary latches where present.
  • Airbags and SRS: Ensure driver and passenger airbags and pretensioners are connected before powering the system to avoid setting hard codes. Do not use test lights or power probes on SRS circuits.
  • Initial power-on test: With the dash still loose, reconnect the battery. Turn the key to run without starting. Confirm cluster illumination, turn signals, hazards, horn, wipers, headlamps, blower operation, mode selection, blend control, recirc, radio, 12 V outlets, and accessory switches. Look for abnormal warning lights. Use a scan tool to check for DTCs in PCM, ABS, SRS, GEM/BCM, and HVAC modules. Address any open circuits now.
  • HVAC function: With engine off, you can still verify actuator movements by changing modes and temperatures (for electronic systems). Listen for door movement and watch the actuator shafts.
  • Aftermarket add-ons: Identify any non-OEM wiring (remote start, radios, reverse cameras). Reconnect properly; secure with proper connectors and heat shrink. Do not twist-and-tape.
  • Finalize fasteners: Once electricals pass, tighten IP end bolts, top cowl screws, and center support to specification. Tighten HVAC plenum nuts at the firewall. Install the radio/HVAC stack, bezels, glove box, knee bolsters, and side panels.

6) Coolant Fill, A/C Service, and Final Quality Checks

  • Cooling system refill—vacuum method: Best practice is a vacuum fill tool. Connect to the radiator neck or surge tank, pull vacuum to spec, verify it holds, then open the valve to draw premixed coolant. This prevents air pockets that can overheat engines and starve heater cores.
  • Cooling system refill—funnel method: If a vacuum tool isn’t available, use a spill-free funnel at the radiator. Heater on full hot, blower on low. Fill cold, start the engine, and maintain the funnel level. Expect a burp when the thermostat opens. Squeeze upper radiator hose to help purge air. Top off as needed and install the cap once stabilized.
  • Pressure test warm: After reaching operating temp and getting cabin heat, shut down and pressure test again to check for weeps at the core tubes and firewall. Inspect the passenger floor for dampness and sniff for coolant odor.
  • A/C evacuation and recharge: If the evaporator lines were open, replace the accumulator/drier, evacuate for at least 30 minutes, and recharge to the factory spec by weight. Verify clutch engagement and vent temperatures.
  • Rattles and squeaks: Add thin HVAC foam at plastic-to-metal contact points on bezels, center stack, and knee bolsters. Replace broken clips rather than overtightening screws.
  • Steering column and controls: Confirm shifter function (if column shift), brake-shift interlock operation, steering wheel controls, and horn. Ensure the column tilt and telescoping (if equipped) operate smoothly.
  • Road test checklist: Monitor coolant temp, verify HVAC mode/blend under load, check for wind noise and rattles over bumps, and confirm no new warning lights. Re-scan for DTCs post-drive.

Quick Reassembly Checklist

  • Disconnect battery; wait 3+ minutes before SRS work
  • Obtain OEM IP/HVAC diagrams and procedures
  • Sort and stage fasteners, clips, and brackets
  • Rebuild HVAC plenum, install heater core, seal and pressure test
  • Loosely mount HVAC plenum and hang the dash assembly
  • Route harnesses correctly; attach all grounds
  • Reconnect SRS, column, cluster, radio/HVAC, and accessories
  • Power up, test functions, scan for DTCs
  • Tighten IP and plenum fasteners to spec
  • Refill coolant (vacuum preferred), bleed air, verify heat
  • Recharge A/C if opened; verify vent temps
  • Rattle-proof trim; road test and re-scan

Common Pitfalls and How to Avoid Them

  • Skipping grounds: The most frequent cause of mystery electrical behaviors. Tag and tighten every ground.
  • Misrouted harness over IP beam: Leads to pinches and broken connectors during final tighten. Keep harness in factory channels.
  • Forgetting SRS connectors: Causes airbag lights and stored hard faults. Always reconnect SRS before powering up.
  • Overtightening into plastic: Strips bosses and guarantees squeaks. Use hand tools or low-torque settings.
  • Coolant spills: Protect the carpet and HVAC inlet to prevent lingering odors. Clean immediately if spilled.
  • Leaving the dash fully bolted before testing: Always test with the dash loose to simplify corrections.

FAQs

Do I have to discharge the A/C to replace the heater core on an early-2000s F-150?

On most 1997–2003 F-150s, the heater core is in the HVAC plenum with the evaporator. Factory procedure removes the IP and the HVAC case, which typically requires disconnecting A/C lines (evacuate/recharge). Some techs split the case in the cab to avoid A/C service, but sealing and access are more difficult. If lines were already opened, replace the accumulator/drier, use new O-rings, evacuate, and recharge by weight.

I have extra screws leftover. Is that a problem?

Possibly. Small trim screws may interchange without issue, but missing structural fasteners (IP mounts, center support, plenum nuts) lead to rattles and movement. Cross-check with IP and HVAC exploded diagrams. Replace missing screws with correct metric machine screws or flange bolts. Avoid random self-tappers in structural points.

The airbag light is on after reassembly. Now what?

Do not guess. Use a capable scan tool to read SRS DTCs. Common causes are unplugged passenger airbag connectors, a disturbed clock spring, or unseated yellow SRS connectors. Power down the vehicle, correct the issue, reconnect, then clear codes. Never probe SRS circuits with a test light or power probe.

Can I refill the cooling system without a vacuum filler?

Yes, using a spill-free funnel. Set the heater to full hot, fill cold, run the engine, and watch for the thermostat opening. Squeeze the upper hose to purge air. However, a vacuum fill tool is strongly recommended to prevent air pockets, reduce warm-up time, and avoid overheating.

How long should this take?

On a job torn down incorrectly, an experienced technician can often reassemble in 6–10 hours with good parts organization and service info. DIYers should plan a full weekend. Add time if A/C service is required, hardware is missing, or wiring was modified.

When should I stop and tow it to a shop?

If you lack SRS awareness, don’t have access to service information, or you find damaged harnesses or heavy module corrosion, it’s safer to hand off. Send photos to a shop that has done IP removals on similar trucks and confirm they’ll accept midstream projects.

Recommended Tools and Supplies

  • Trim clip pliers, plastic pry tools, and assorted panel clips
  • Metric socket set with 7 mm–13 mm, Torx set, 1/4″ and 3/8″ ratchets with extensions and a universal joint
  • Magnetic bowls, labeled bags, painter’s tape, and a marker
  • Pressure tester, vacuum coolant refill tool or spill-free funnel
  • Vacuum pump and manifold set (if A/C opened), new O-rings, accumulator/drier
  • Harness tape (cloth), split loom, dielectric grease, heat-shrink connectors
  • HVAC foam tape, butyl rope/sealant for ducts
  • OBD-II scan tool with SRS/HVAC capability

Approach it like a series of small, solvable tasks: secure the HVAC box, hang the dash, route harnesses, connect and test, then torque and finish. The mess becomes manageable once you work in order and verify each subsystem before moving on.
