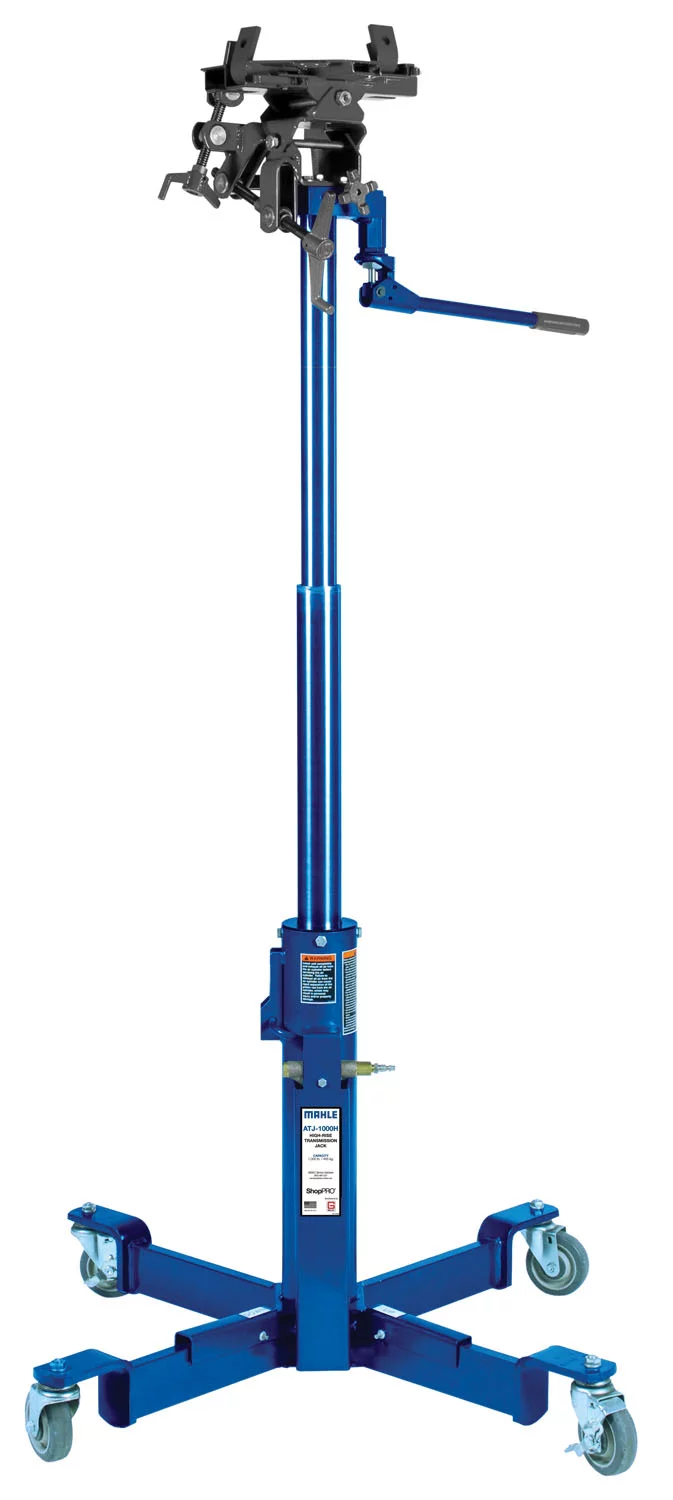

1,000LB AUTO TRANS JACK-H - Mahle Service Solutions

Specifications

• Manufacturer: Mahle Service Solutions
• Model Number: ATJ-1000H
• Product Name: 1,000LB AUTO TRANS JACK-H
• Lifting Capacity: 1,000 pounds (0.5 ton)
• Product Weight: 159 pounds
• Overall Dimensions (Width x Length): 41 x 41 inches (104 cm x 104 cm)
• Minimum Start Height: 34.5 inches (88 cm)
• Maximum Lift Height: 72 inches (183 cm)
• Head Plate Dimensions: 11.5 x 11.5 inches (29 cm x 29 cm)
• Tilt (Forward / Rear / Side to Side): 40° / 20° / 10°
• Power: Two-stage design, 1st stage 100% air operated, 2nd stage hydraulic
• Required Air Pressure: 90 to 160 psi (6.2 to 11.0 bar)

Key Features

• Two-Stage Operation: Features a two-stage design with an air-operated first stage for rapid lifting and a hydraulic second stage for precise control, optimizing both speed and accuracy during tasks.
• High Load Capacity: Engineered to safely handle loads up to 1,000 pounds, making it suitable for a diverse range of automotive transmissions and heavy vehicle components.
• Flexible Head-Plate Design: Incorporates an 11.5 x 11.5-inch head-plate with heavy-duty acme threaded screws, offering a flexible and stable platform for securing loads and facilitating effortless tilt adjustments.
• Multi-Directional Tilt: Provides extensive tilt capabilities including 40° forward, 20° rear, and 10° side-to-side, which aids in precise alignment for transmission installation and removal.
• Enhanced Maneuverability: Equipped with swivel casters that ensure easy movement and positioning within busy workshop environments.
• Integrated Load Security: A Nylon Speed-Strap™ is included to quickly and securely fasten components to the jack, enhancing safety during lifting and transport.
• High-Rise Capabilities: Designed as a high-rise jack with a maximum lift height of 72 inches, providing access to components on elevated vehicles or lifts.

Applications

• Professional Automotive Repair: An essential tool for automotive service centers and professional garages, streamlining the complex processes of transmission removal and installation.
• Drivetrain Service: Ideal for supporting and positioning various heavy drivetrain components during repair and maintenance tasks.
• Vehicle Component Handling: Facilitates safe and controlled handling of heavy vehicle parts for maintenance across a wide range of vehicle types, including cars, trucks, and SUVs.
• Elevated Workstations: Particularly effective when used in conjunction with vehicle lifts, allowing technicians to work comfortably on components at higher elevations.

Benefits

• Increased Workplace Safety: Securely manages heavy and cumbersome transmissions, significantly mitigating the risk of accidental slippage, equipment damage, and potential injuries to technicians.
• Optimized Workflow Efficiency: The innovative two-stage air/hydraulic lifting mechanism and precise controls accelerate transmission servicing, thereby reducing labor time and enhancing overall workshop productivity.
• Superior Alignment Accuracy: Offers exceptional precision through its multi-directional tilt and fine adjustments, ensuring accurate mating of transmissions with engines and minimizing the potential for costly rework.
• Reduced Technician Strain: Significantly lessens the physical effort required for lifting and maneuvering heavy components, contributing to improved ergonomics and reduced fatigue for service personnel.
• Broad Operational Versatility: Its robust capacity, adjustable features, and high lift range make it adaptable for a wide variety of automotive transmission types and diverse service bay configurations.
