Hi-Temp Refrigerated Air Dryer 100 CFM

3-in-1 Hi-Temp Dryer - Cools, Dries, Cleans
Unequaled Performance in an Efficient and Compact Design

A space saving design, quiet and reliable operation and ease of installation are just a few of the advantages of a Motor Guard Refrigerated Compressed Air Dryer. Add to that a high air inlet temperature (120F) and a low pressure dew point (+38F) and you have unequaled performance in an efficient and compact design.

Motor Guard's non-cycling design ensures a consistent flow of dry air without the wide swings common to other models. That means perfect finishes in the spray booth, start to finish, every time. A control panel on each unit features an operating light and an at-a-glance dew point indicator to verify performance.

All Motor Guard dryers feature reliable and efficent reciprocating compressors and environmentally friendly R-134a refrigerant. Motor Guard stands behind their equipment we sell.

Motor Guard Refrigerated Air Dryer Features:

• Reliable and Quiet Reciprocating Compressor
• Environmentaly Friendly R-134a Refrigerant
• 120F Air Inlet Temperature
• +38F Pressure Dew Point
• Dew-Point Indicator on Control Panel
• Timer Operated Drain Valve
• Easy Installation with Pre-Wired Power Cord

Specifications:

• Nominal Airflow Rating: 100 SCFM
• Outlet Pressure Dew Point: 50°F
• Compressor Rating: 25 HP
• Electrical Rating: 115/1/60 V/Ph/Hz
• Input Power: 2.11 KW
• Rated Inlet Air Temperature: 180°F
• Maximum Air Inlet Temperature: 180°F
• Rated Inlet Air Pressure: 100 PSIG
• Maximum Air Inlet Pressure: 250 PSIG
• Dimensions: 17" L x 17" W x 46" H
• Shipping Weight: 170 Lbs
• Pipe Connection: 3/4" NPT
• Compressor Type: Reciprocating
• Refrigerant: R407c
• Condensor Type: Fan/Coil Condensor
• Condensor Drain Type: Air Operated Float Drain

FREE FREIGHT* Applies to direct shipping points within the 48 continental US states. Rural Area Surcharge may apply.

• *An additional $40.00 will apply to all residential deliveries of heavy-equipment.
• *For lift-gate service, add $135.00.

Manufacturer drop ship

Image is representative of product, but may vary from actual item.

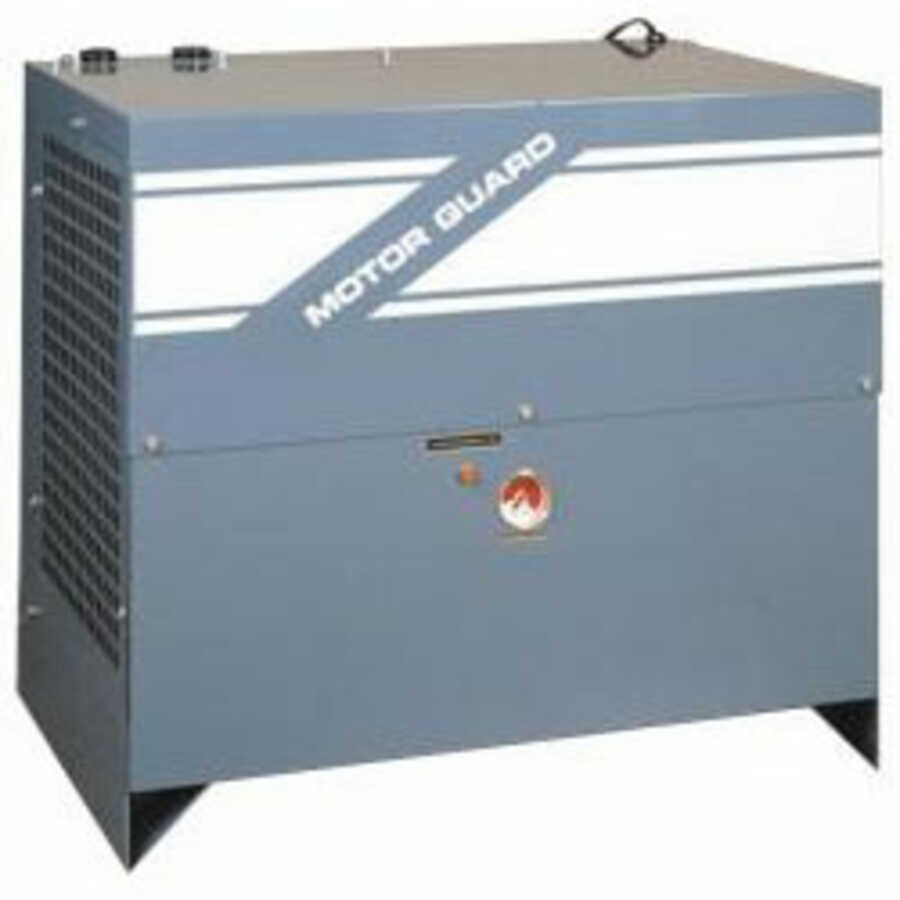

Motor Guard RF-2053 3-in-1 Hi-Temp Refrigerated Air Dryer 100 CFM
