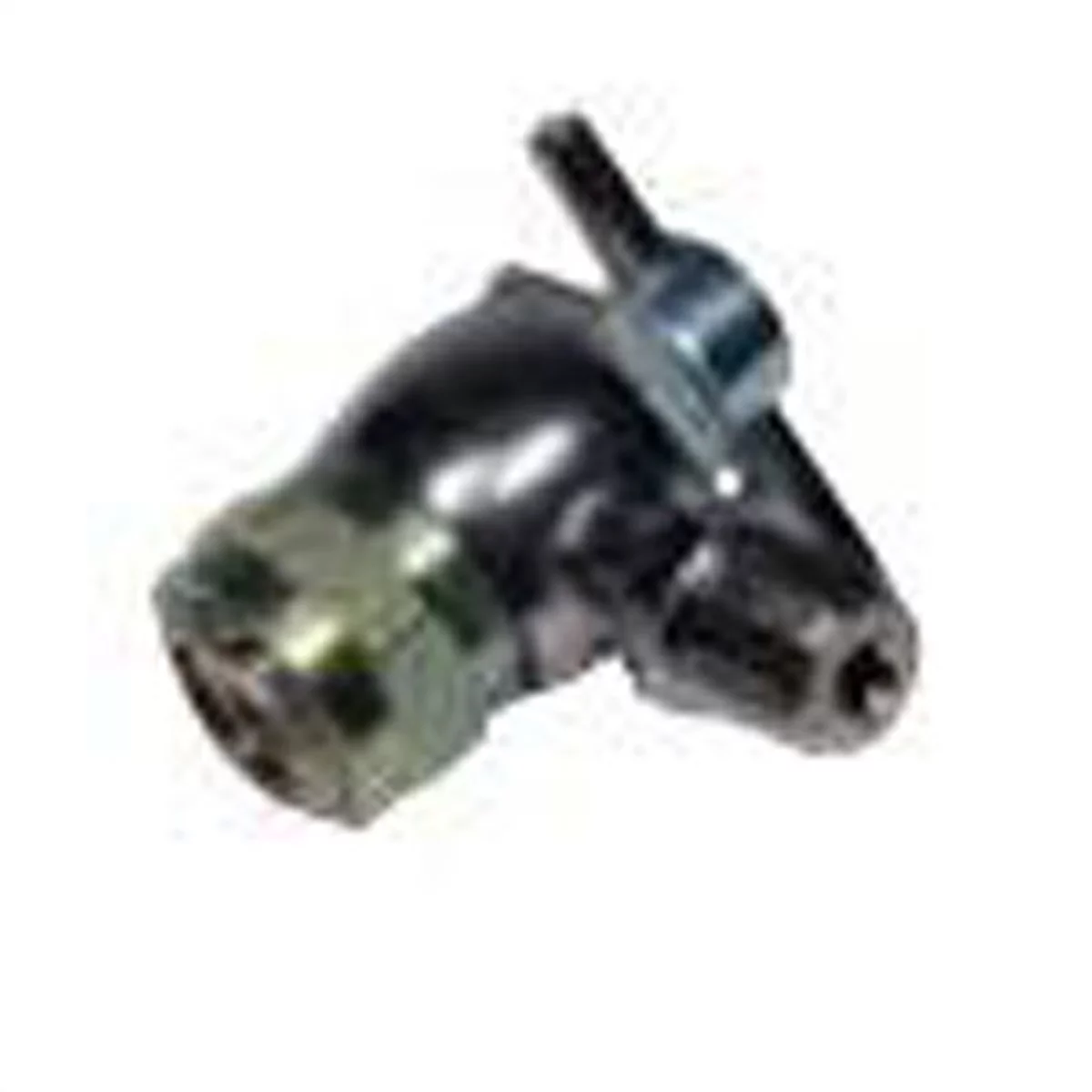

High Pressure Inflating Connector - 1/8 In NPT Male - Amflo

Amflo high pressure inflating connections attach securely by hand or wrench to the valve cap threads of high pressure valves. They can be fitted to gauging and inflating devices by a variety of methods. Various angles permit easy attachment to hard-to-reach valves.

556 Features:

• Fits Thread Size: .305-32
• Air Line Connection: 1/8" NPT Male
• Maximum Pressure Rating: 3,000 PSIG
• Configuration: Air line connection 90 degrees to axis of valve
• Recommended Maximum Torque To Valve Mouth*: 50 in.-lb.
• Has core depressor pin, copper sealing washer.

* It may be necessary to replace the sealing washers after a number of uses to insure sealing on valve mouth.

Amflo 556 High Pressure Inflating Connector
