What is an A/C manifold gauge set used for?

A/C manifold gauge sets are essential tools for diagnosing and servicing automotive air conditioning systems. They allow you to measure the pressure in the system's high and low sides, which helps determine if the system is properly charged, if there are any leaks, or if components like the compressor are functioning correctly. Many sets, like the Robinair 48450, also include hoses for connecting to the system and charging it with refrigerant.

What refrigerants are compatible with different manifold gauge sets?

Compatibility depends on the gauge set and its hoses. Older sets were designed for refrigerants like R-12, while newer sets are compatible with R-134a or R-1234yf. Using the wrong refrigerant with a gauge set can damage the tool and contaminate the system. Always check the gauge set's specifications to ensure it's compatible with the refrigerant you're using. Conversion kits, such as the FJC 6025, allow older R12 manifolds to work with R134a systems.

What are the key components of an A/C manifold gauge set?

A typical A/C manifold gauge set includes two gauges (one for high pressure and one for low pressure), a manifold body with valves, and a set of color-coded hoses. The gauges display the pressure readings, while the manifold body allows you to control the flow of refrigerant. The hoses connect the manifold to the vehicle's A/C system service ports. Some sets also include couplers for connecting to different types of service ports.

What do the pressure readings on an A/C manifold gauge tell me?

The high and low side pressure readings provide valuable information about the A/C system's health. Unusual pressures can indicate a variety of problems, such as a refrigerant leak, a faulty compressor, a clogged expansion valve, or air in the system. Comparing the readings to the manufacturer's specifications for the vehicle and refrigerant type is crucial for accurate diagnosis. Factors like ambient temperature also affect readings.

What size hoses and fittings do I need for my A/C manifold gauge set?

Hose and fitting sizes can vary depending on the refrigerant and the vehicle's A/C system. R-134a systems typically use different fittings than R-12 systems to prevent cross-contamination. R1234yf systems have unique fittings as well. Make sure the hoses and fittings on your gauge set are compatible with the service ports on the vehicle you're working on. Some sets, like those from Mountain, include 90-degree couplers for easier access in tight spaces.

How do I properly connect an A/C manifold gauge set to a vehicle's A/C system?

First, identify the high and low side service ports on the vehicle's A/C system. Connect the corresponding hoses from the manifold gauge set to these ports. Ensure the connections are secure and leak-free. Open the manifold valves to allow refrigerant to flow into the gauge set. Be sure to consult the vehicle's service manual for the correct procedure and port locations for your specific vehicle.

How do I calibrate my A/C manifold gauges?

Most A/C manifold gauges have a calibration screw that allows you to adjust the needle to zero when the system is not in use. To calibrate, connect the manifold to both the high and low side ports with the system off and equalize the pressure. Then, use a small screwdriver to adjust the screw until the needle points to zero. Some higher-end models, like certain CPS Products Pro-Set models, are designed for easy calibration to maintain accuracy.

What safety precautions should I take when using A/C manifold gauges?

Working with refrigerants can be dangerous, so always wear appropriate personal protective equipment (PPE), including gloves and eye protection. Work in a well-ventilated area and avoid breathing refrigerant vapors. Be careful when handling refrigerant containers, as they can be under high pressure. Never overcharge an A/C system, as this can damage components. If a gauge lens is cracked, like a Mastercool 85253-E, replace it immediately.

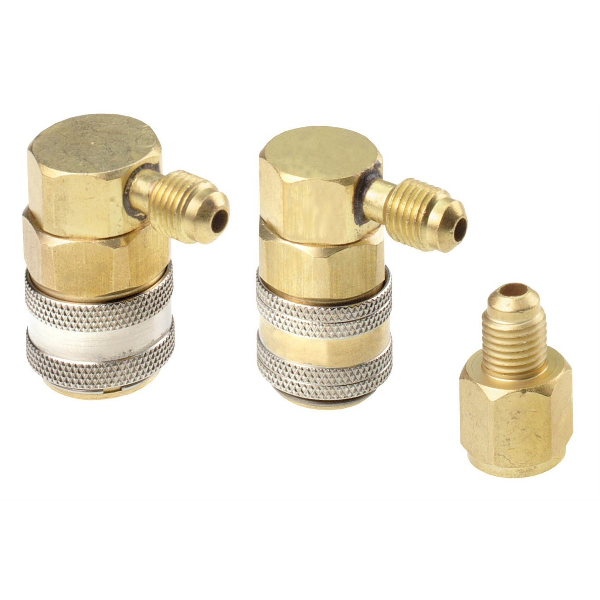

FJC [6025] R12 to R134a Manifold Gauge Conversion Kit - FJC 6025 Manifold Gauge Conversion Kit R12 to R134a

Search

Manufacturers [more]

R12 to R134a Manifold Gauge Conversion Kit - FJC 6025 - FJC

Part #: 6025

larger image

Specifications

Manufacturer: FJC Inc.
Model Number: 6025
Product Dimensions: 4.7 x 3.5 x 1.1 inches
Product Weight: 1 lb
Compatibility: Converts manifold gauge sets from R12 to R134a refrigerant systems.

Key Features

Seamless Conversion: Designed to connect R12 manifold gauges to R134a systems, ensuring smooth operation and reliable performance.
Compact Design: Small, lightweight construction makes it easy to handle and store.
Durable Materials: Built with quality and long-lasting components to withstand frequent use and harsh conditions.
Versatile Fittings: Adaptable to various manifold gauge sets, offering enhanced connectivity for professional and DIY applications.

Applications

HVAC Work: Essential for technicians converting older R12 systems to modern R134a refrigerant standards in vehicles or other cooling systems.
DIY Refrigerant Maintenance: A convenient tool for automotive enthusiasts working on their own air conditioning systems.
Professional Use: Perfect for auto repair shops or HVAC service providers requiring a reliable conversion solution.

Benefits

Cost-Effective Solution: Allows you to upgrade existing R12 manifold sets rather than purchasing entirely new equipment.
Time-Saving Convenience: Easy-to-use design simplifies the conversion process, minimizing downtime during repairs.
Enhanced System Performance: Ensures precision compatibility between R12 and R134a systems, reducing leaks and inefficiencies.
Lightweight and Portable: Compact size ensures it fits neatly in toolkits, making it readily accessible whenever needed.

Only 2 left in stock - order soon Inventory available from other suppliers, prices may be different

List: $78.00 Save: $52.67

$25.33
