What are the different types of A/C leak detectors available?

A/C leak detectors come in several forms, each with its strengths. UV leak detection kits, like the Tracerline OPTIMAX 3000, use a special dye added to the A/C system that fluoresces under UV light, revealing leaks. Electronic leak detectors, such as those offered by Robinair, use sensors to detect refrigerant gases in the air near potential leak points. Combustion leak testers, such as those offered by Uview, confirm head gasket failure by detecting combustion gases in the coolant. Finally, pressure testers such as the Uview Airlift system can identify leaks by monitoring pressure drops in the cooling system after it has been sealed and pressurized.

How do UV leak detection kits work and what are their advantages?

UV leak detection kits involve adding a fluorescent dye to the A/C system. This dye circulates with the refrigerant and escapes wherever there's a leak. Technicians then use a UV flashlight, like the Tracerline OPTIMAX 3000, to illuminate the system. The dye glows brightly under UV light, making leaks easy to spot, even in hard-to-reach areas. UV kits are advantageous because they can pinpoint even very small leaks and work well for systems with multiple potential leak sites.

What is an electronic A/C leak detector and how does it work?

An electronic A/C leak detector is a device that uses a sensor to detect the presence of refrigerant gas in the air. The technician moves the detector's probe along A/C lines and components. When the sensor detects an elevated concentration of refrigerant, it indicates a potential leak. These detectors, like some Robinair models, are sensitive to various refrigerants. Electronic detectors can be highly effective for locating leaks, especially in enclosed spaces, and are a good choice for all CFCs, HCFCs, and HFCs.

What is a combustion leak tester and when should I use one?

A combustion leak tester, like the Uview Combustion Leak Tester, is used to detect the presence of combustion gases in the engine's cooling system. This indicates a leak in the head gasket or cylinder head, allowing combustion gases to enter the coolant. The tester typically involves drawing air from the coolant reservoir through a chemical solution. If combustion gases are present, the solution changes color. This test is crucial when diagnosing overheating, coolant loss, or unexplained engine issues.

Can A/C leak detectors be used on all types of refrigerants?

While some A/C leak detectors are compatible with a wide range of refrigerants, others are designed for specific types. For example, some electronic leak detectors, like certain Robinair models, are designed for use with all CFCs, HCFCs, and HFCs. When selecting a leak detector, always check the manufacturer's specifications to ensure it is compatible with the refrigerant used in the system you are testing. Using an incompatible detector can lead to inaccurate readings or damage to the device.

What is a cooling system pressure tester and how does it help find leaks?

A cooling system pressure tester, such as the Uview Airlift Cooling System Leak Checker and Airlock Purge Tool Kit, pressurizes the cooling system to identify leaks. The tool attaches to the coolant reservoir and introduces pressure. A gauge monitors the pressure, and a drop indicates a leak. This method is effective for finding leaks in hoses, the radiator, water pump, and other cooling system components. By visually inspecting the system while it's pressurized, you can pinpoint the exact location of the leak.

What maintenance is required for A/C leak detectors?

The maintenance requirements for A/C leak detectors vary depending on the type. For UV leak detection flashlights, like the Tracerline OPTIMAX 3000, ensure the lens is clean and the battery is charged. Replace bulbs as needed, using the correct replacement, such as Mastercool 12V 50W Replacement Bulb. For electronic leak detectors, periodically clean the sensor and replace it according to the manufacturer's recommendations. For combustion leak testers, ensure the fluid is fresh and uncontaminated. Always store leak detectors in a clean, dry environment to prevent damage.

Search

Manufacturers [more]

Uview | 414500 | UView Spotgun Micro-Lite UV Leak Detection Kit

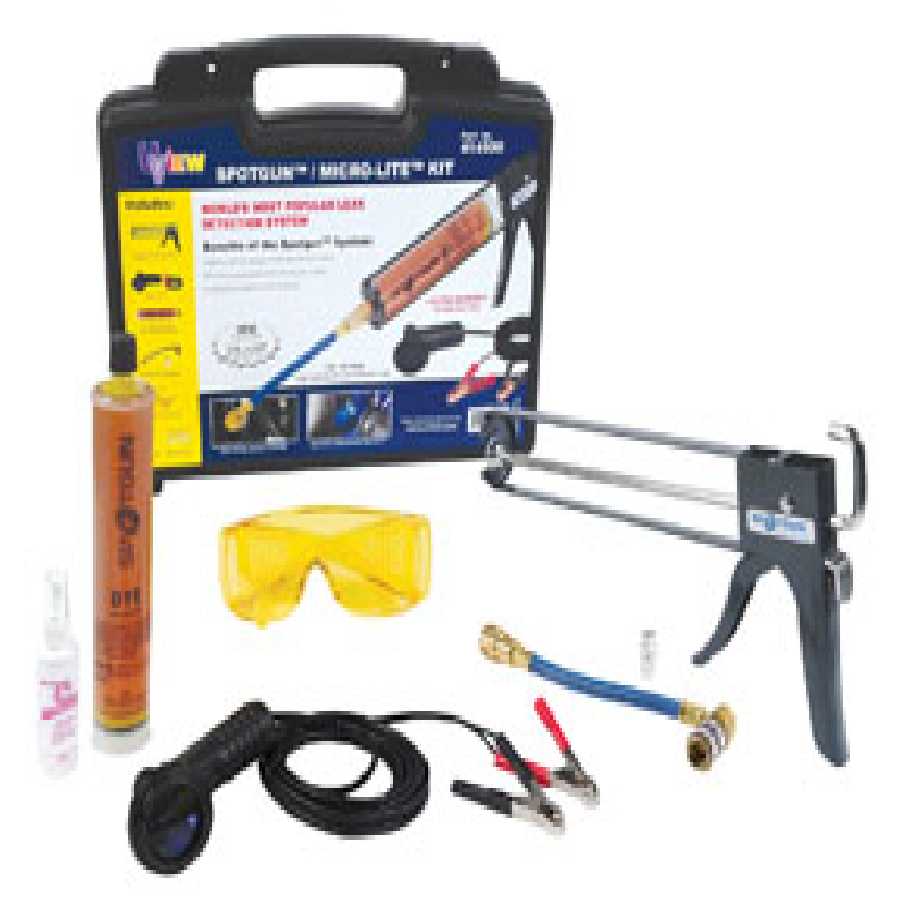

Name: UView Spotgun Micro-Lite UV Leak Detection Kit
Brand: Uview
SKU: 52490
Price: 178.43 USD
Availability: LimitedAvailability
Rating: 3 (1 reviews)

larger image

Specifications

Manufacturer: Uview
Model Number: 414500
Weight: 7 lbs
Dimensions: Not specified
UV Light Output: 50-watt
Cord Length: 16 ft.
Dye Cartridge Capacity: 8 oz (240mL), services up to 64 vehicles

Key Features

Spotgun™ Injection System: This patented system provides precise and mess-free injection of UV dye into A/C systems, preventing over-injection and waste.
Micro-Lite™ UV Lamp: A powerful 50-watt UV light with a 16-foot cord illuminates even the smallest leaks, making detection efficient in various work environments.
A/C ExtenDye™ Cartridge: The kit includes an 8 oz (240mL) A/C ExtenDye™ cartridge, formulated to protect hybrid AC system components and enhance the A/C system's life and efficiency.
Comprehensive Kit Components: Equipped with essential accessories, including R-12 and R-134a adapters, UV dye enhancing glasses, service stickers, a dye cleaner, and a rugged storage case for organized and ready use.
Hybrid Safe: The included A/C ExtenDye™ is specifically designed for safe use with hybrid AC system components, including electrically driven compressors.

Applications

Automotive A/C Systems: Ideal for accurately identifying leaks in R-12 and R-134a automotive air conditioning systems.
HVAC Systems: Effective for diagnosing refrigerant leaks in various heating, ventilation, and air conditioning units.
Refrigeration Systems: Suitable for pinpointing leaks in industrial and domestic refrigeration equipment.
Preventative Maintenance: Integrates into routine system checks to detect potential issues before they lead to major failures.

Benefits

Efficient Leak Identification: Pinpoints A/C system leaks quickly, reducing diagnostic time and improving repair efficiency.
Accurate Dye Application: The Spotgun™ system ensures exact dye amounts are injected, eliminating guesswork and minimizing waste.
Cost Savings: Accurate leak detection helps prevent unnecessary replacement of components and reduces refrigerant loss, offering a cost-effective solution.
Enhanced System Longevity: Using A/C ExtenDye™ contributes to extending the life and improving the overall efficiency of the A/C system.
User-Friendly Design: Designed for straightforward dye injection and UV light usage, making the process accessible for technicians of all experience levels.
Professional Portability: The rugged storage case keeps all components organized and protected, allowing for reliable leak detection on the go.

Other products
Uview Homepage
Model: 52490
Shipping Weight: 7lbs
Manufacturers Part #: 414500
Manufactured by: Uview
Also Known As: UV414500, UVU414500, UVW-414500
